Infrared panel 400W 720 x 620 x 15 mm white infrared heating wall electric heating, heating panel

Infrapanel

Dimensions: 720 x 620 x 15 mm
Input power: 400 Watt
Color: White
Main material: Aluminum, Plastic
Cable length: 1.9 meters
Power consumption: 400 W
Voltage/Frequency (V~Hz): 220-240 V / 50 Hz
Surface material: IR ceramic coating
Protection class (IP): IP54

More information:

Wall electric heating

In comparison to traditional gas or oil heaters, infrared heaters offer a significant advantage: they not only heat the air in the room, but also the surrounding objects, such as walls, furniture and other solid surfaces. The 400 W power of the white heating panel ensures even and direct distribution of heat. This technology reduces air turbulence, which in turn reduces the flow of dust, thus creating a more pleasant and healthy indoor climate.

Another advantage of infrared heating is that it does not require a long preheating time to heat up the room. The heating panel immediately increases the temperature of the room when needed, especially in transitional periods such as spring and autumn, when temperatures can drop quickly in the evening. Thanks to its timeless design, the panel can be installed flexibly and easily fits into any room.

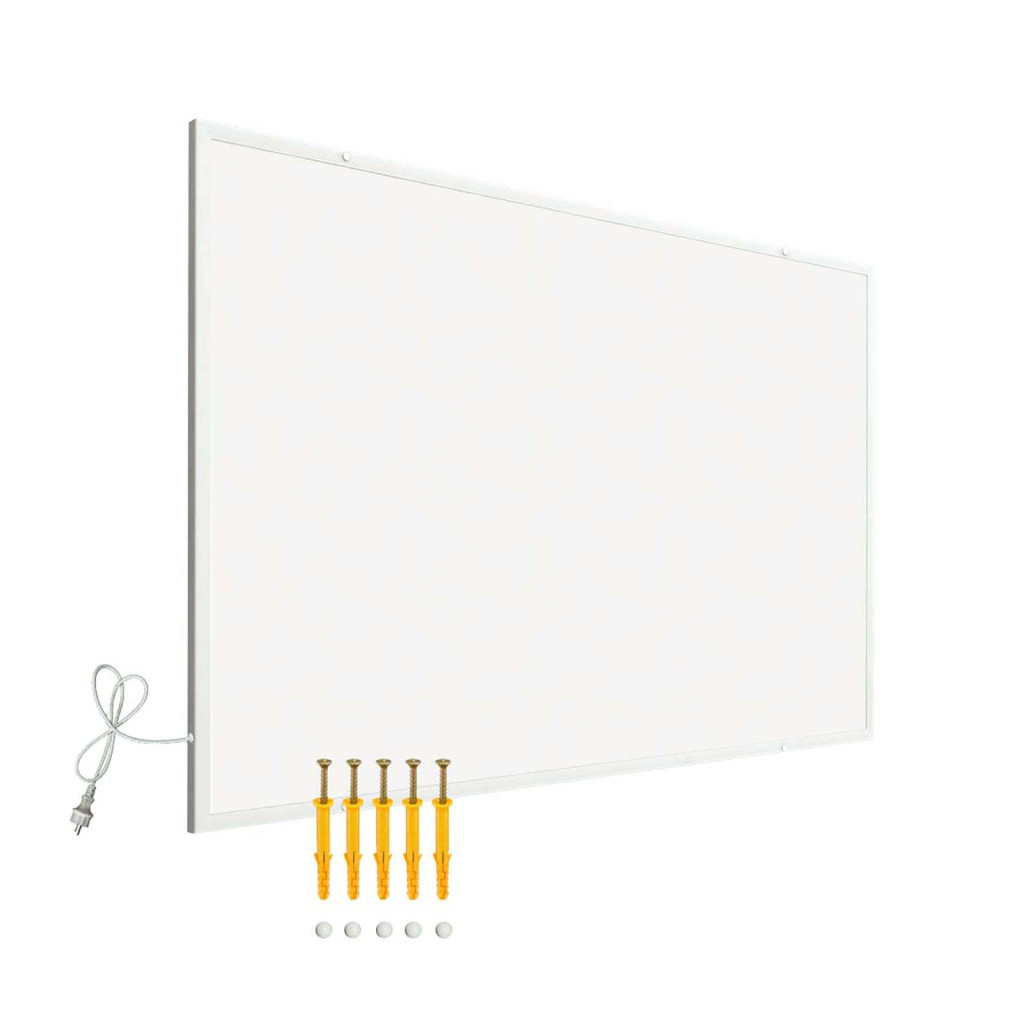

Infrared heating panels are famous for their high energy efficiency. With an amazing conversion efficiency of 98%, the heating panel provides extremely efficient heat distribution. The flat and light heating panel is equipped with a carbon heating element and has a ceramic infrared coating. The integrated overheating protection provides extra safety. The frame is made of aluminum, and the back is made of polyurethane and aluminum foil.

The heating panel comes with a 1.9 meter long cable that can be easily connected to a socket. The optional outlet thermostat (not included) offers additional comfort, which enables temperature-dependent regulation.

Helpful tip: To calculate the energy demand of a room with a standard ceiling height of 2.60 m, approximately 75 watts/m² is required. For a 15 m² room, this means an energy demand of 1125 watts, so we recommend the use of two 600-watt panels.

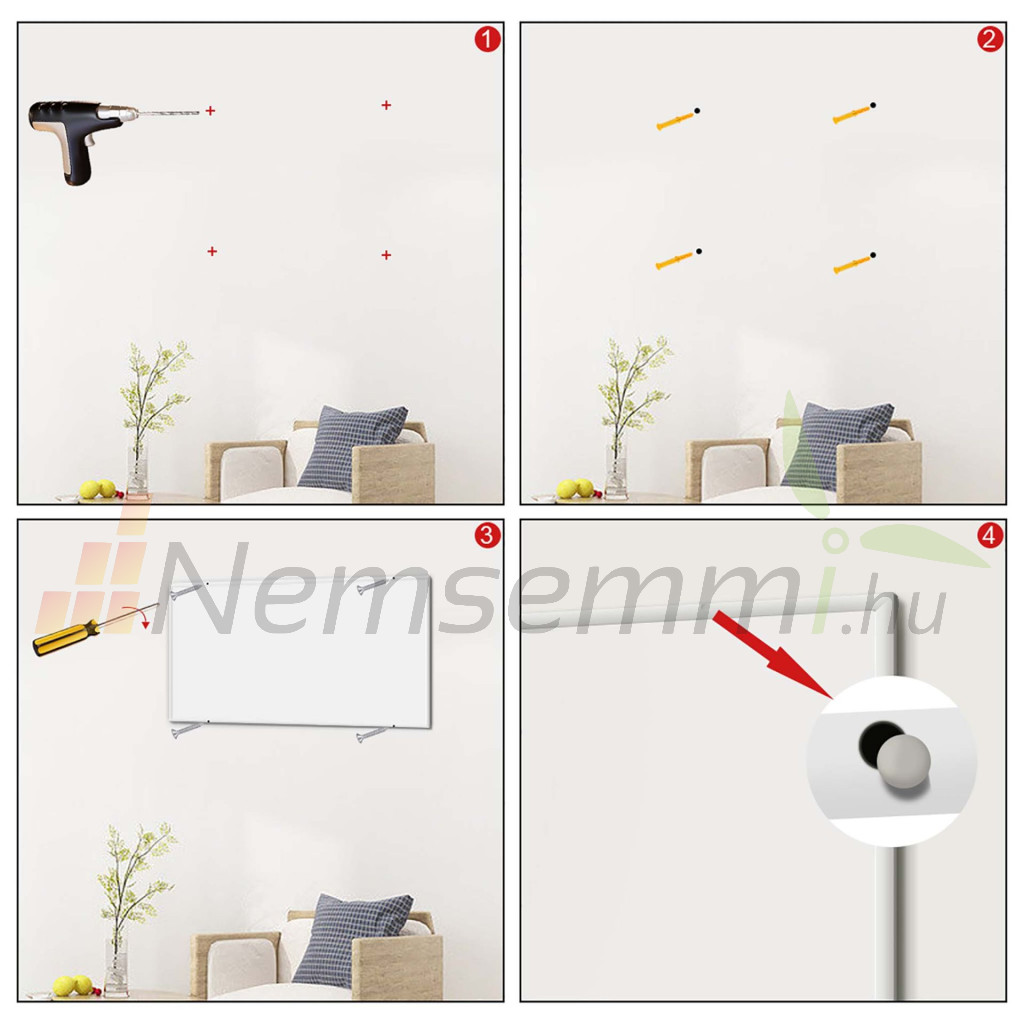

Important installation and safety notes:A 920 x 620 x 15 mm panel is designed exclusively for wall mounting. Since the surface temperature can reach between 80 °C and 100 °C during operation, they should not be left unattended, especially for children, pets and people in need of assistance. In addition, it is important not to cover the heater to ensure optimal heat dissipation.
