Infrared panel 300W 50x60cm white

Infra panel

Color: white
Size: 500 x 600 x 22 mm
Weight: 2.8 kg
Voltage: 230 V / 50HZ
Protection: IP44 Protected against splashing water from all directions
Power: 300 Watt
Radiation angle: approx. 170°
Surface temperature only: front 80-95°C

                                      20-25°C at the back
Protection against overheating
Surge protection
Material: powder coated, galvanized steel plate
With infrared heating, it is not the cubic meter of air in the room that matters, but the size of the walls.

To make the calculation easier for you, we recommend a simple method:
Mmeasure the room multiply its length and width, let's say 3x4 meters, and you get the floor area of ​​the room, in this case 12 m2.

Calculate 75 watts for each square meter, i.e. 12 m² x 75 Watt/m² = 900 Watt.

This value is valid up to a ceiling height of 2.6 meters, above that calculate 10 centimeters + 10 watts per square meter.

A panel can provide adequate heat within a radius of 3-4 meters.
If the room is larger than this, we recommend the use of several panels placed 2-4 meters apart. Greater total performance than what you calculated is unnecessary!

More information:

Infrapanel

The heating of the modern era is the infrared panel heater! Infrared radiation does not primarily heat the space, but the body and the walls, just as the sun does.
Ideal for the bedroom, as it does not mix dust , does not dry the air.

A particularly favorable solution for asthmatics.

It is brilliant for a large office space or factory hall, because it does not try to heat the air, but rather the occupants feel a pleasant warmth.

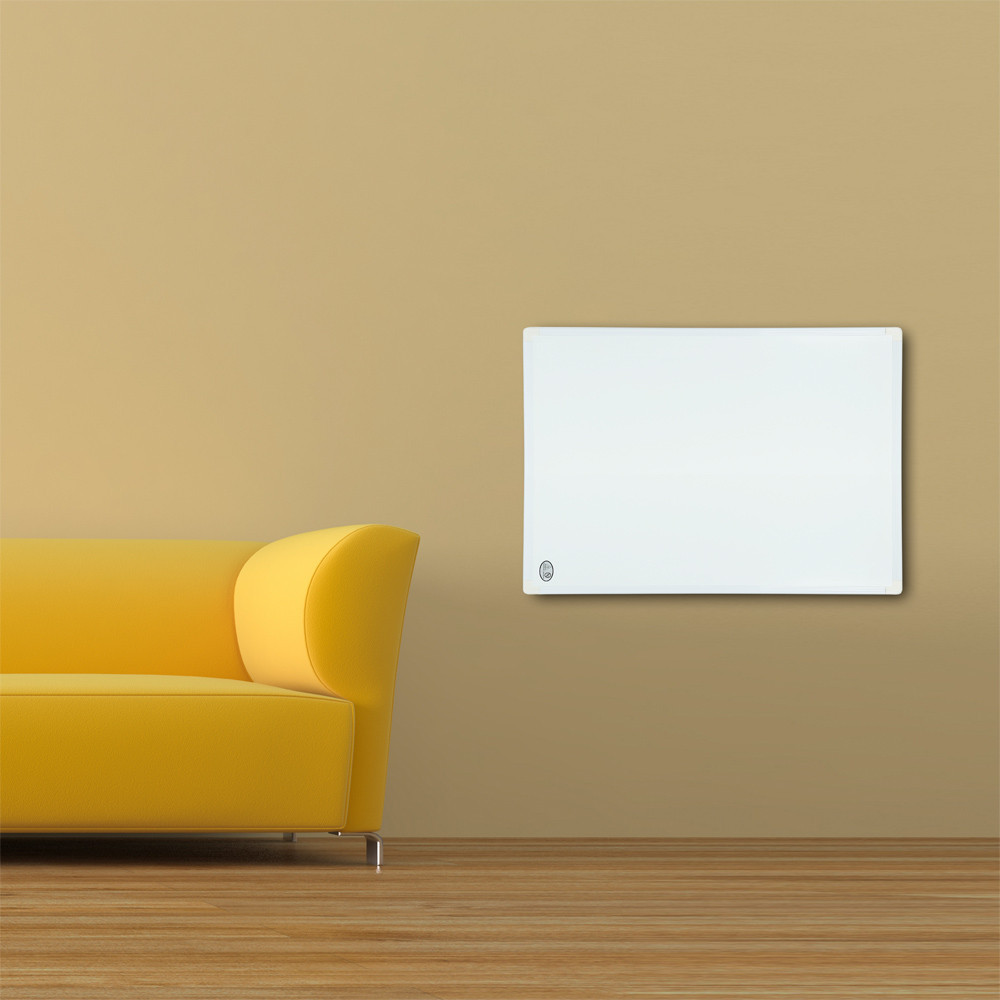

Slim, elegant design, can be mounted on the wall or ceiling.

It can be plugged directly into the outlet, but can also be controlled with a room thermostat.

In the details, we describe how you can calculate the required info panel performance!
