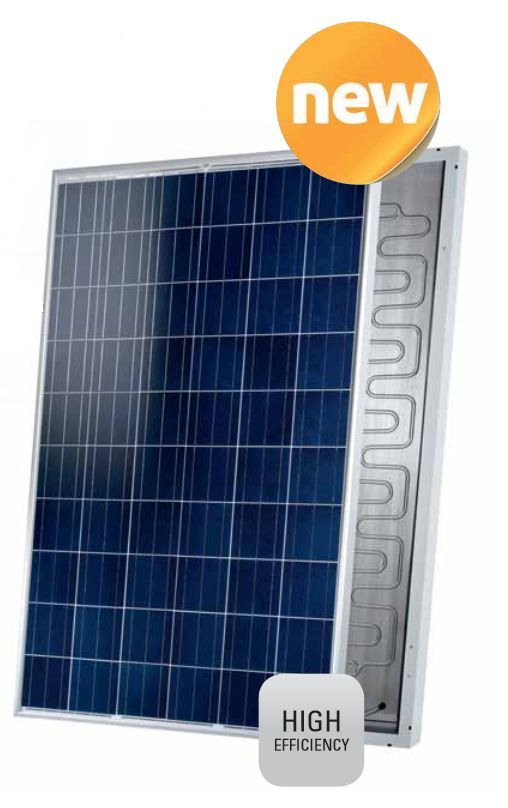

Hybrid solar collector - 250W polycrystalline solar panel and flat collector in one! The flat collector cools the solar cell for higher output, while producing hot water

Hybrid solar collector

SOLAR

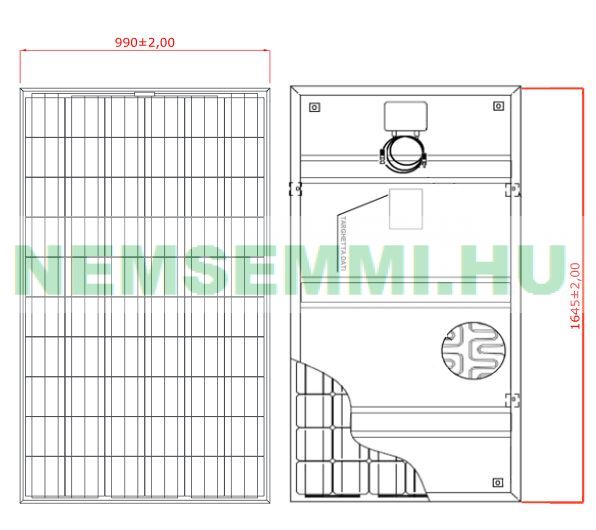

Dimensions: 1645 x 990 x 46 mm
Operating temp. range -40°C +85°C (for antifreeze liquid)
Number of cells/module 60
Cell dimensions 156 x 156 mm

SPAN TECHNICAL DATA
Maximum power 250Wp
< span style="color: #000000;">Rated voltage 30.84V
No load voltage (Voc) 37.2V
Rated current 8.15A
Short-circuit current (Isc) 8.04A
Efficiency: 15.35%
Isolation voltage: DC 1000V
By-Pass diode 16 A
Glass thickness: 4 mm

ADDITIONAL TECHNICAL DATA
normal operating temp. 46°C ± 2°C
temperature coefficient Voc -0.33 %/°C
temperature coefficient Isc 0.005 % /°C
temperature coefficient power -0.42 % /°C

GENERAL DATA OF SOLAR COLLECTORS
Net surface area: 1.45 m²< br />Rated power: 849 W
Stagnation temperature: °C 83
Flow max: 2 liters/minute
Volume: 1.2 liters
Heat loss factor: 15.529 Wm-2K-2
Heat loss factor: a2 0.010 Wm-2K-2

The antifreeze flowed on the back side keeps the solar cell at a low temperature, which does not rise above the ideal temperature even in hot weather, therefore increasing the power generation capacity of the solar cell by at least 25%, while hot water can be produced from the released heat.
The flat collector unit is more than half the heat generator has the same capacity as a flat collector of similar size.

More information:

Hybrid solar panel

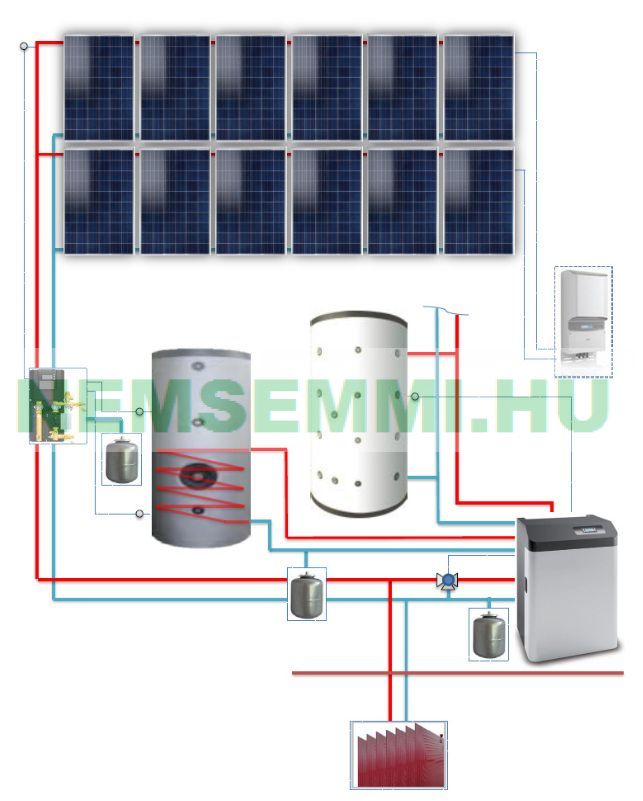

The hybrid module has a double function - It produces electricity and heats water.
The first part of the collector has the polycrystalline solar cell, which produces electricity and unfortunately heats up in the process. Heating significantly reduces its efficiency.

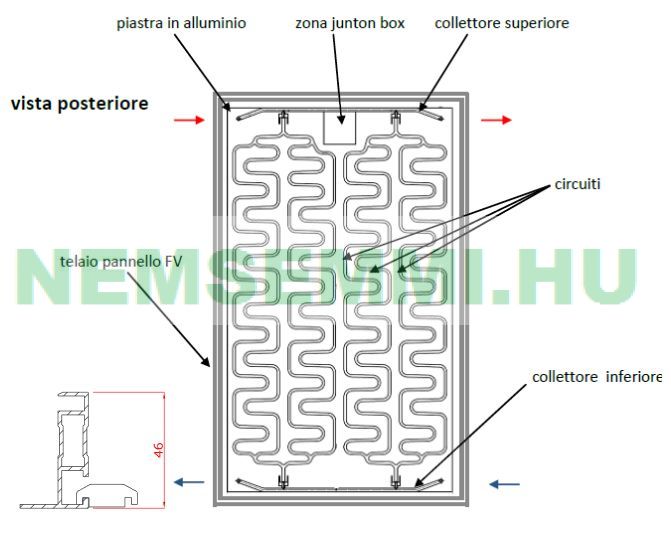

A flat collector is integrated on the rear surface, which absorbs the heat and cools the solar panel.
Thus increases the performance of the solar panel while producing hot water like a traditional solar collector.

Minimum order quantity 200 pieces!
