Home-made heat exchanger

A heat exchanger with the following parameters can be assembled from the set with a little dexterity:

Power: 15 KW
Recommended number of spirals: 25
If it goes well, the width of the roll is approx. 14 cm
Roll height approx. 55 cm

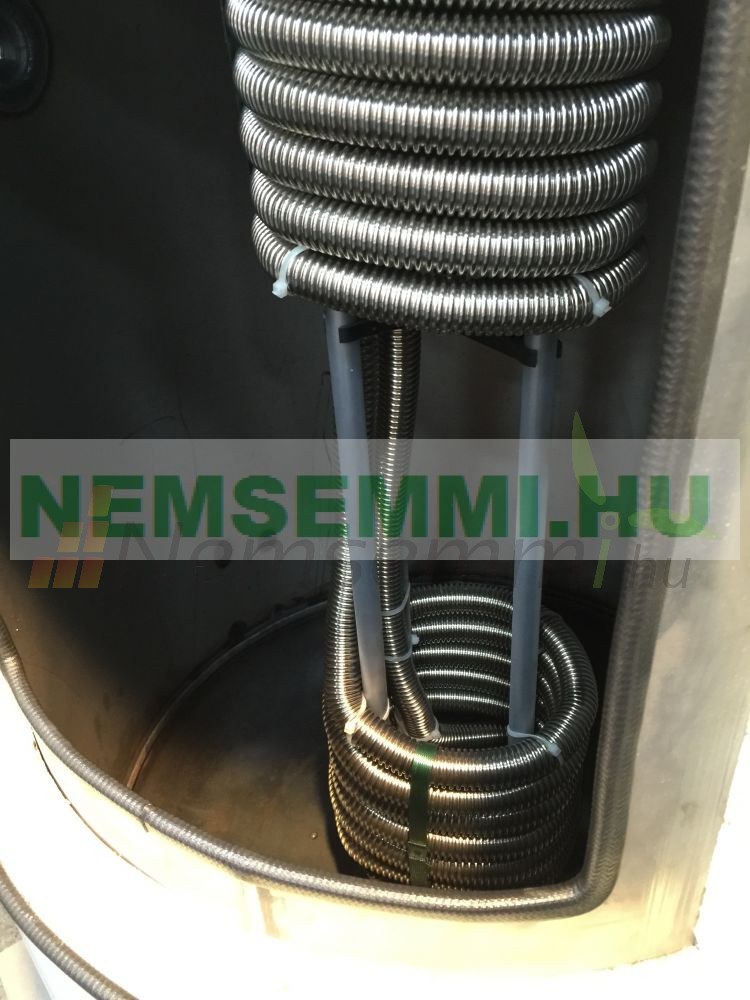

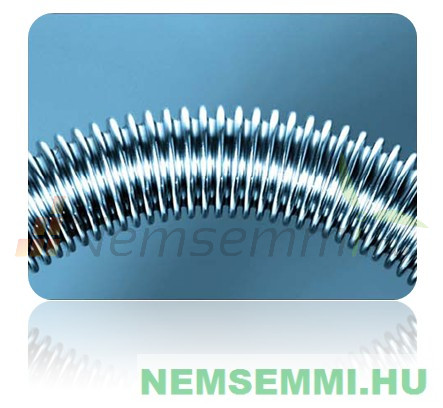

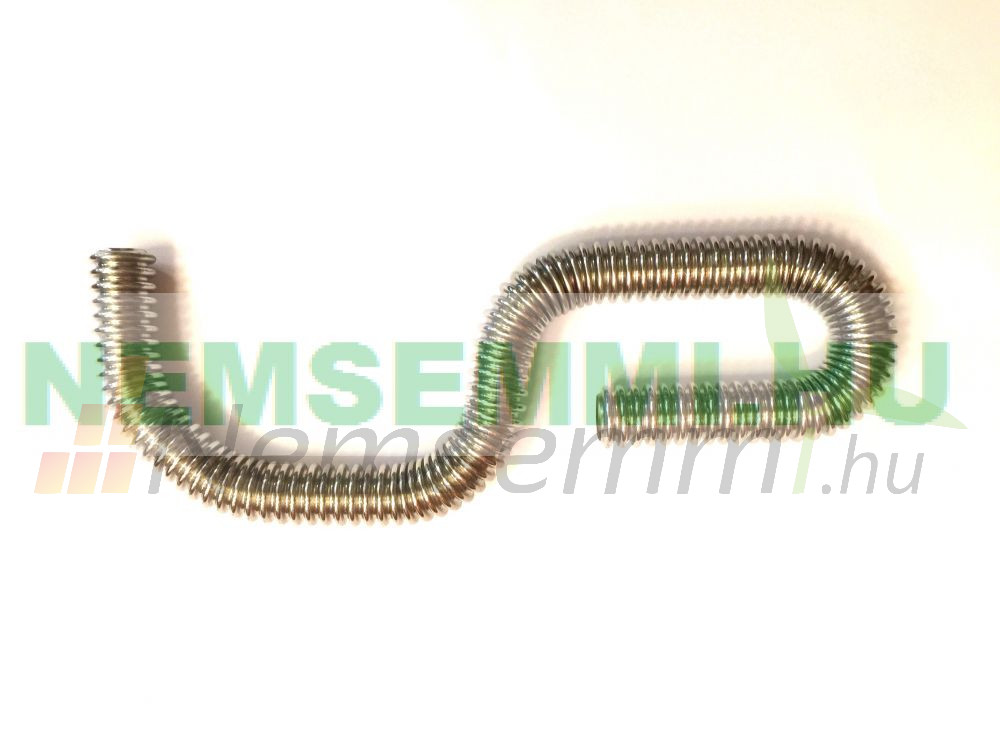

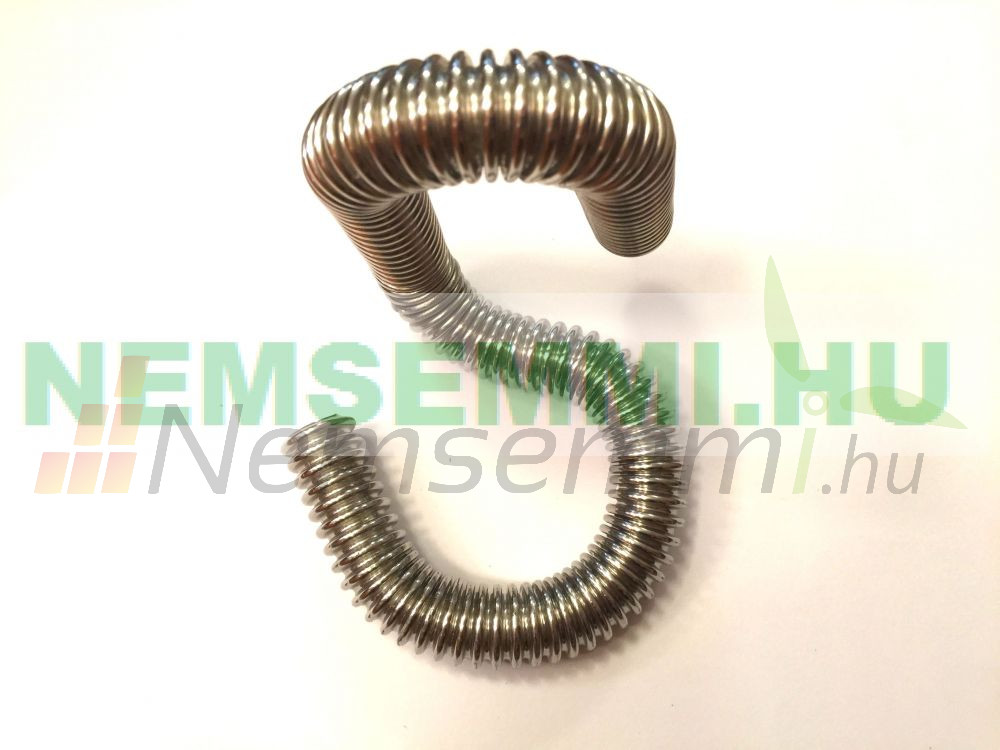

The inox ribbed pipe:

9 meter DN12 inox throat pipe
Total surface: 0.76 m2
Outer diameter: 16.5 mm +/- 0.4 mm
Inner diameter: 12.5 mm +/- 0.4 mm
Operating pressure at 20° up to 20 bar< /span>
Weight 0.09kg/m

Stainless steel material 1.4404
Complies with: DIN EN ISO 10380
Temperature range between -270°C +600°C

More information:

Home-made heat exchanger

You can make your own heat exchanger from this kit with a little dexterity and copper or stainless wire!

Power: 15 kW

The set includes:
9 meter DN12 inox throat pipe

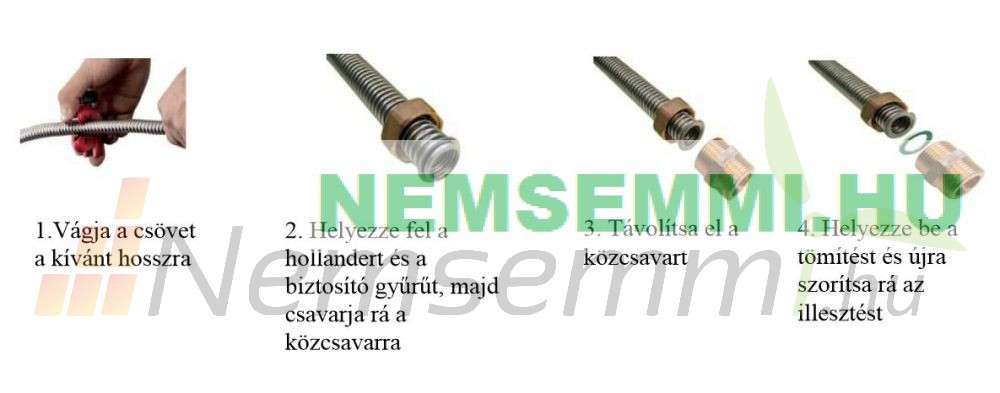

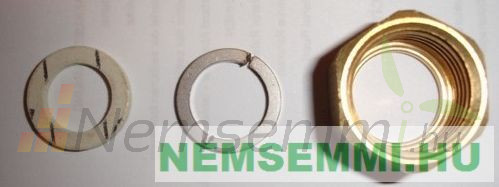

2 pieces of 1/2" spanners can be installed Dutch

If you want a longer or thicker tube, you can buy it by the meter under the INOX PIPE menu item.

For information, the useful surface of pipes of different diameters:
DN12 0.085 m²/m
DN16 0.10 m²/m
< span style="color: #000000;">DN20 0.128 m²/m

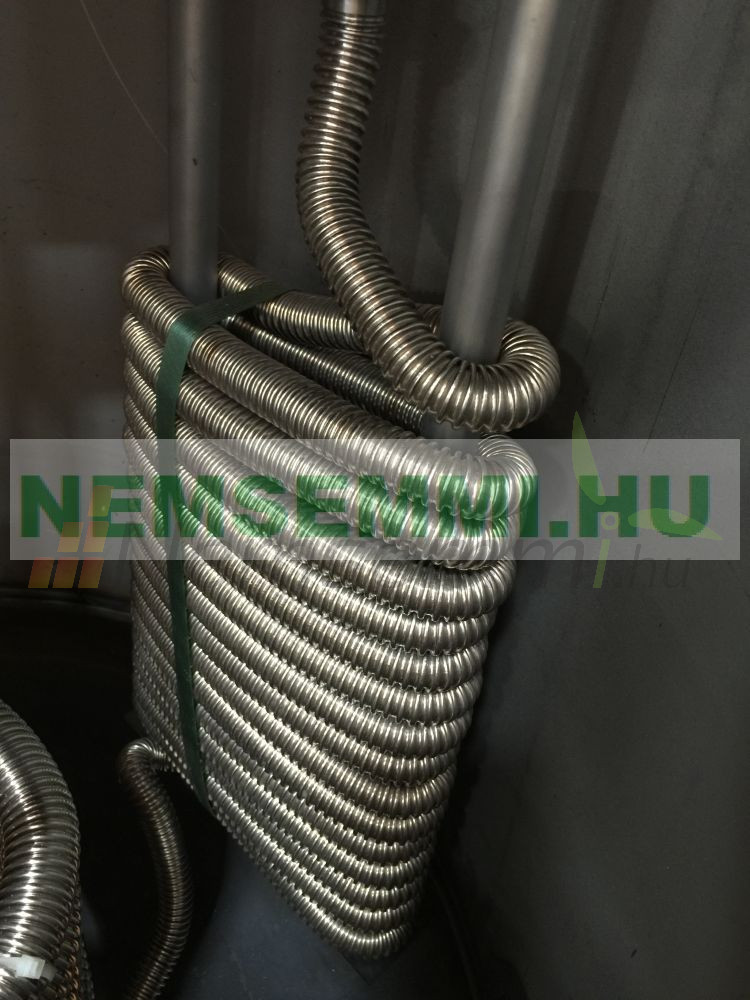

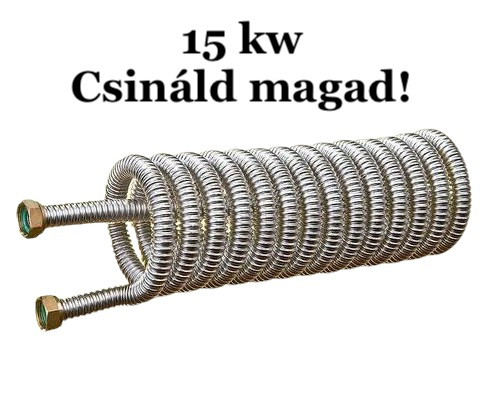

Homemade heat exchanger 15 kW Do it yourself! Made of DN12 inox ribbed pipe, with 1/2" connector. 0.76 m² useful surface

Home-made heat exchanger

Home-made heat exchanger
