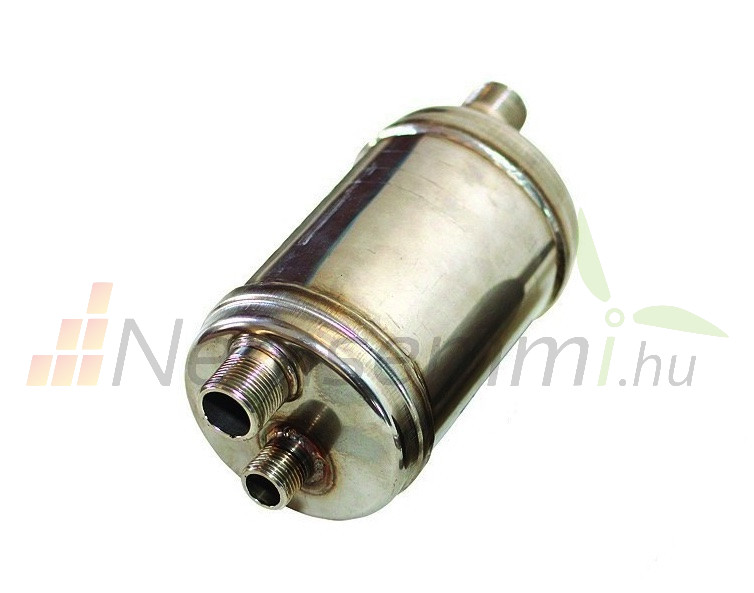

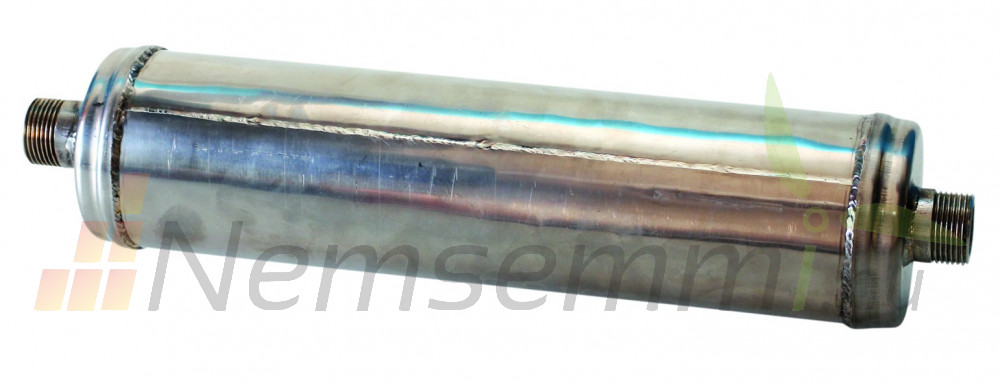

Spirec KN-0 Spiral coil heat exchanger 30 kW cylindrical stainless steel

Spiral coil heat exchanger 30kW stainless

KN heat exchanger series general information:

• Suitable for making general-purpose hot water heated with steam or water


• High heat transfer capacity 3-75 l/min according to domestic hot water production demand


• Extremely small installation size, small space requirement - 100 mm diameter


• Maximum pressure allowed on both sides is 16 bar, temperature 150 °C


• Stainless steel parts in contact with water


• Durable, welded construction, 0.8 mm polished stainless coiled plate


• Silicone basic series, Teflon seal for aggressive media or high temperatures

What are the advantages of our Spirec heat exchangers compared to a plate heat exchanger?

• NO,- or it is VERY DIFFICULT to clog, because there is no scale deposit, or an insignificant amount


• MULTIPLE lifetime compared to conventional heat exchangers


• Suitable for heat exchange of WATER, OIL, STEAM, GLYCOL media


• CAN BE CLEANED due to the use of acid-resistant stainless materials


• suitable for floor heating systems without a control unit

Area of ​​application:

• For heating swimming pool water


• Useful for making hot water


• Solar energy utilization heat exchanger


• As a heat pump heat exchanger


• For cooling and heating oil

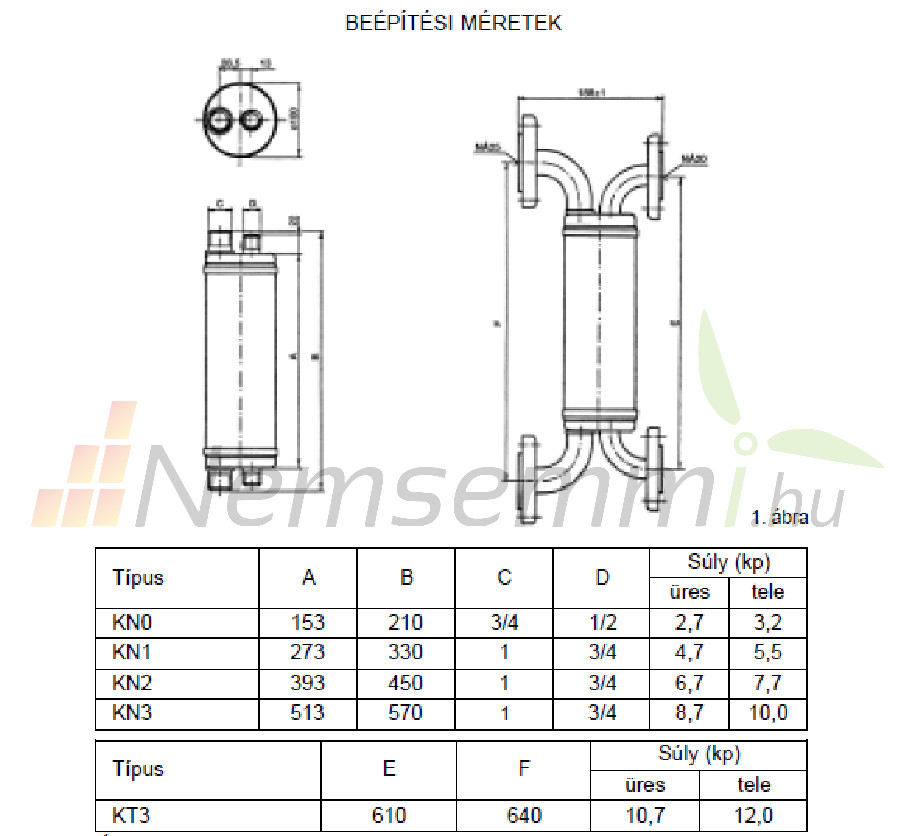

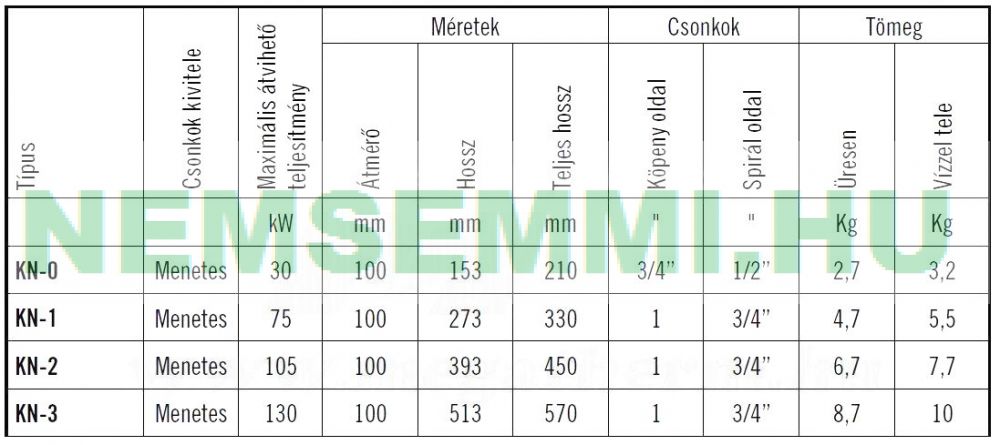

Technical data:

Diameter: 100 mm
Length: 153 mm
Total length: 210 mm
Connectors:
Sheath (heating) side: 2 x 3/4" external thread
Spiral (passed, heat, eg pool ) side: 2 x 1/2" external thread
Weight. 3 kg
Water volume: 0.5 liters
The plates material: W 1.4401 (AISI 316)
Operating pressure: 10 bar
Max. pressure: 15 bar
Operating temperature: -50 +150°C

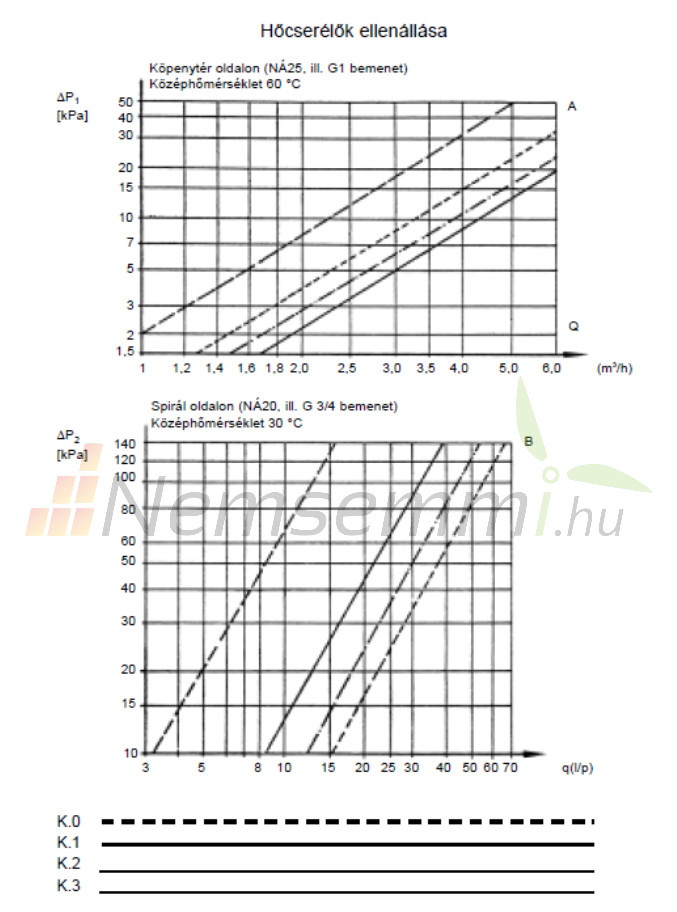

Performance data:

Heat transfer value - S x U (surface area x heat transfer coefficient)

The values ​​in the table are given in W/°C, in water-water operation, for 50°C DHW.
A= shell side mass flow (C" or DN25)
B=spiral side mass flow (C" or DN25)
The amount of heat transferred in the heat exchanger: Q= S x U x DTM, where DTm=logarithmic temperature difference.

More information:

Spirec KN0

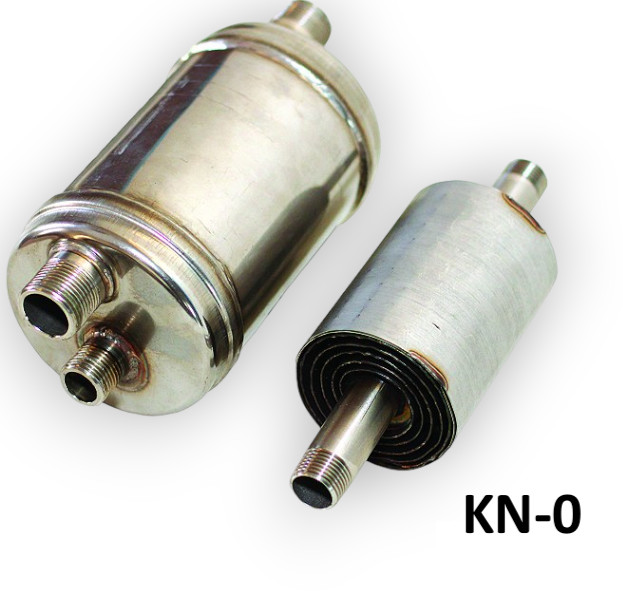

In the selection of spiral coil heat exchangers used in heating systems, we can find a very small but at the same time high performance SPRIEC KN heat exchanger. This 100 mm diameter, cylindrical coiled heat exchanger is usually used to produce domestic hot water, but it also has other functions, so it can also be used in other areas.
Due to its design, the water travels on one side in a spiral, thus turbulent manner. One heating medium (A) makes a long, spiral path through the heat exchanger, while the other (B) passes through it in a transverse direction.
Thanks to this structural design, the available heat transmission factor is of the order of 3-6kW/m²K.
Thanks to this, the heat transfer is better and, if a constant water flow rate (>1m/sec) is ensured, scale deposits practically do not occur in the heat exchanger.
