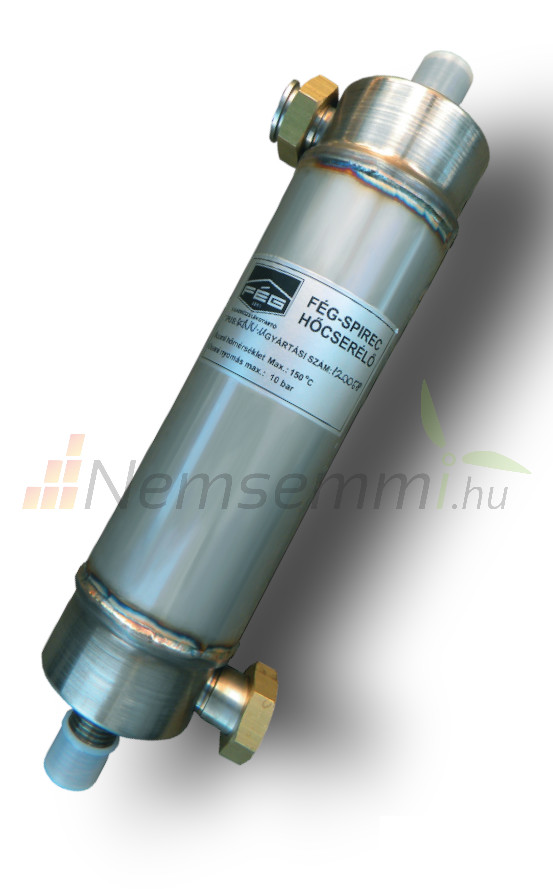

Spirec KNV-0 spiral coil cylindrical heat exchanger 32 kW wi

Spiral coil heat exchanger 32kW stainless

KNV heat exchanger series general information:

very small size and space requirement
excellent heat transforming ability
it also heats a very small amount of liquid
suitable for a wide range of hot water production, heating separation, underfloor heating service, cooling processes
all parts of the heat exchanger in contact with the moving liquid are made of 0.5 mm corrosion-resistant steel
AWI welding
silicone seal

What are the advantages of our Spirec heat exchangers compared to a plate heat exchanger?

NO,- or it is VERY DIFFICULT to clog, because there is no scale deposit, or an insignificant amount
MULTIPLE lifetime compared to conventional heat exchangers
Suitable for heat exchange of WATER, OIL, STEAM, GLYCOL media
CAN BE CLEANED due to the use of acid-resistant stainless materials
suitable for floor heating systems without a control unit

Area of application:

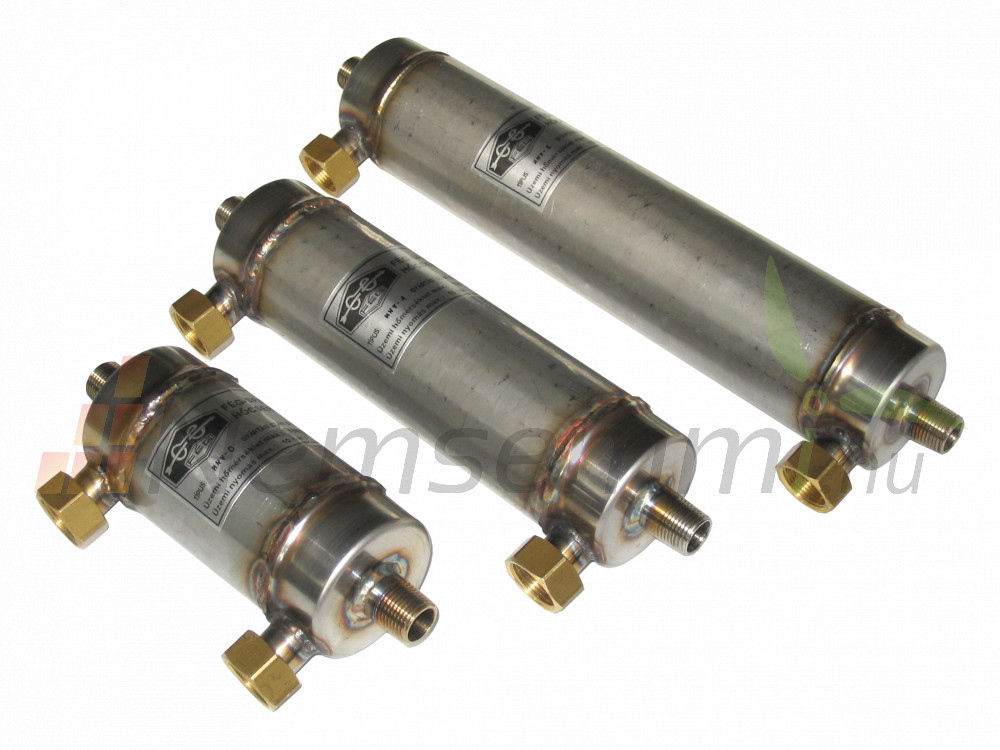

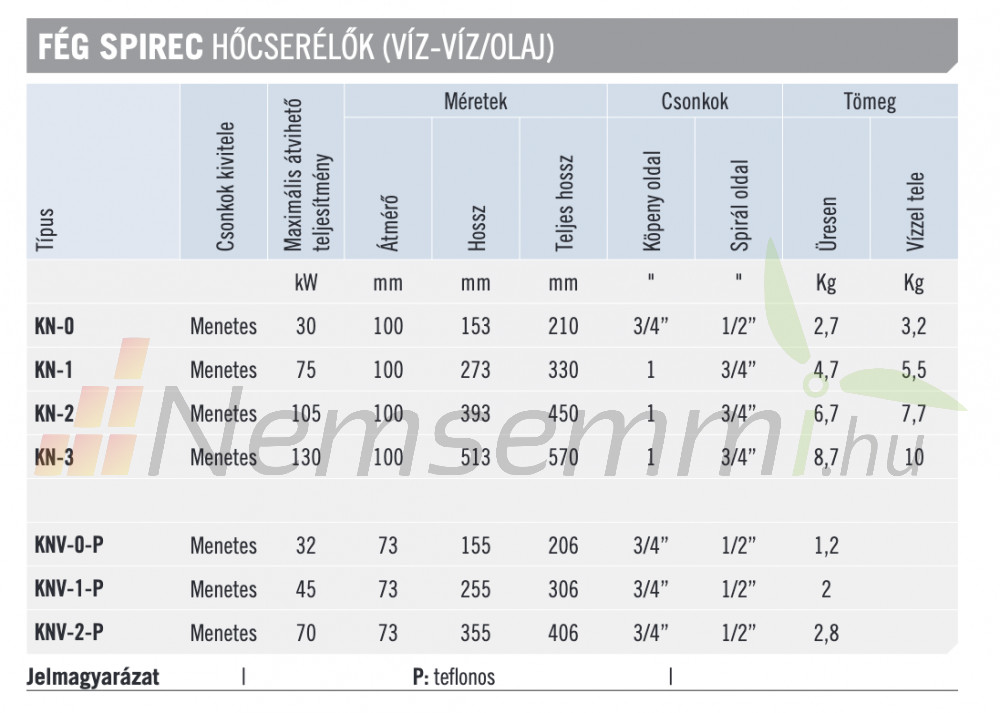

Type	Diameter D (mm)	Length L (mm)	Length H (mm)	Weight (kg)	Performance (kW)
KNV-0	73	155	206	1,2	~1 – 32
KNV-1	73	255	306	2.0	~1 – 45
KNV-2	73	355	406	2.8	~1 – 70

Diameter: 73 mm
Length: 155 mm
Total length: 206 mm
Bare side connector: 3/4" threaded Dutch nut
Spiral side connector: 1/2" threaded socket
A two separated page connections perpendicular to each otherare located el.
Seal material : silicone
Weight: 1.2 kg
Material: 0.5 mm-es kcorrosion resistant steel (KO36Ti, 1.4541, MSz EN 10088-
1:1998; AISI/SIS 321/2337)
Operating pressure: 10 bar
Max. pressure: 15 bar
Operating temperature: -50 +150°C

Can be installed horizontally or vertically. In terms of defrosting, frost protection and venting, the vertical position is preferable. A sealing ring and sealing cord can also be used when assembling connecting parts.

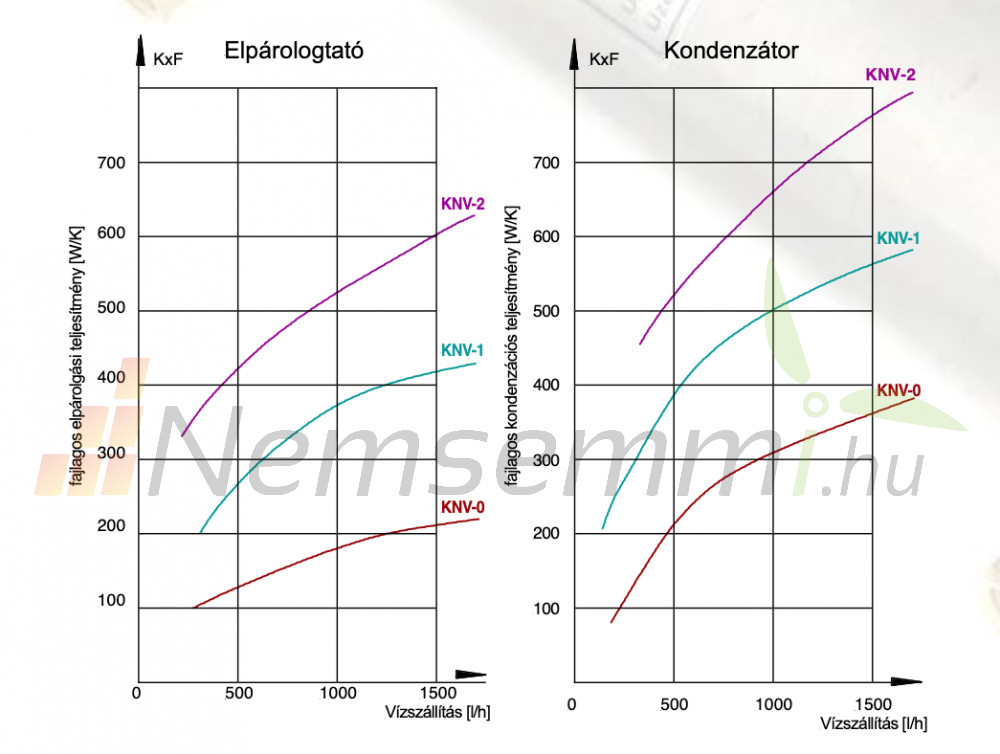

Heat exchange circuit (evaporator):

Pressure conditions, pressure drop on the mantle side:

Heat exchange circuit (condenser):

< /span>

In order to choose a suitable heat exchanger, all installed heat exchangers must be sized according to the given installation and construction conditions!

More information:

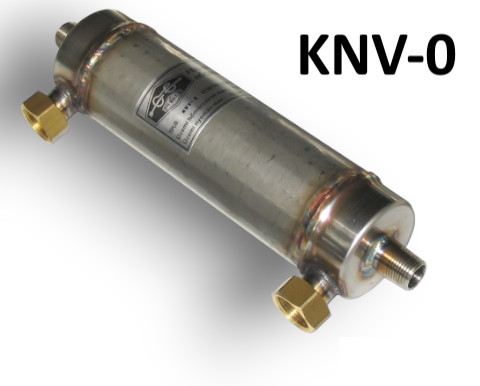

Spirec KNV-0

The KNV type heat exchangers, following the KN series, have very goodproperties. They are welded together from completely corrosion-resistant elements. In terms of its dimensions, its design is smaller than the KN series. It has a smallspace requirement and, thanks to the thin-plate design, verygood heat-transforming capabilities in a wide range of pressure conditions span>applicable. With its small size and hydraulic properties, it fits well with today's heating devices. The forward heating water of the heater must be entered from the heat exchange into the jacket side. The heat exchanger completely separates the primary and secondary sides, its application enables the creation of a mixed heating system.
