heat exchanger 105 kW cylinder

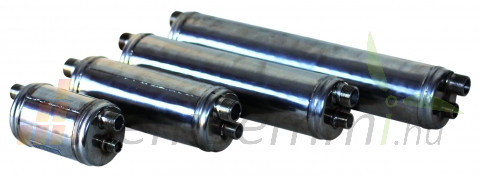

Spiral coil heat exchanger 105kW stainless

KN heat exchanger series general information:

Suitable for making general-purpose hot water heated with steam or water
High heat transfer capacity 3-75 l/min according to domestic hot water production demand
Extremely small installation size, small space requirement - 100 mm diameter
Maximum pressure allowed on both sides is 16 bar, temperature 150 °C
Stainless steel parts in contact with water
Durable, welded construction, 0.8 mm polished stainless coiled plate
Silicone basic series, Teflon seal for aggressive media or high temperatures

What are the advantages of our Spirec heat exchangers compared to a plate heat exchanger?

NO,- or it is VERY DIFFICULT to clog, because there is no scale deposit, or an insignificant amount
MULTIPLE lifetime compared to conventional heat exchangers
Suitable for heat exchange of WATER, OIL, STEAM, GLYCOL media
CAN BE CLEANED due to the use of acid-resistant stainless materials
suitable for floor heating systems without a control unit

Area of application:

For heating swimming pool water
Useful for making hot water
Solar energy utilization heat exchanger
As a heat pump heat exchanger
For cooling and heating oil

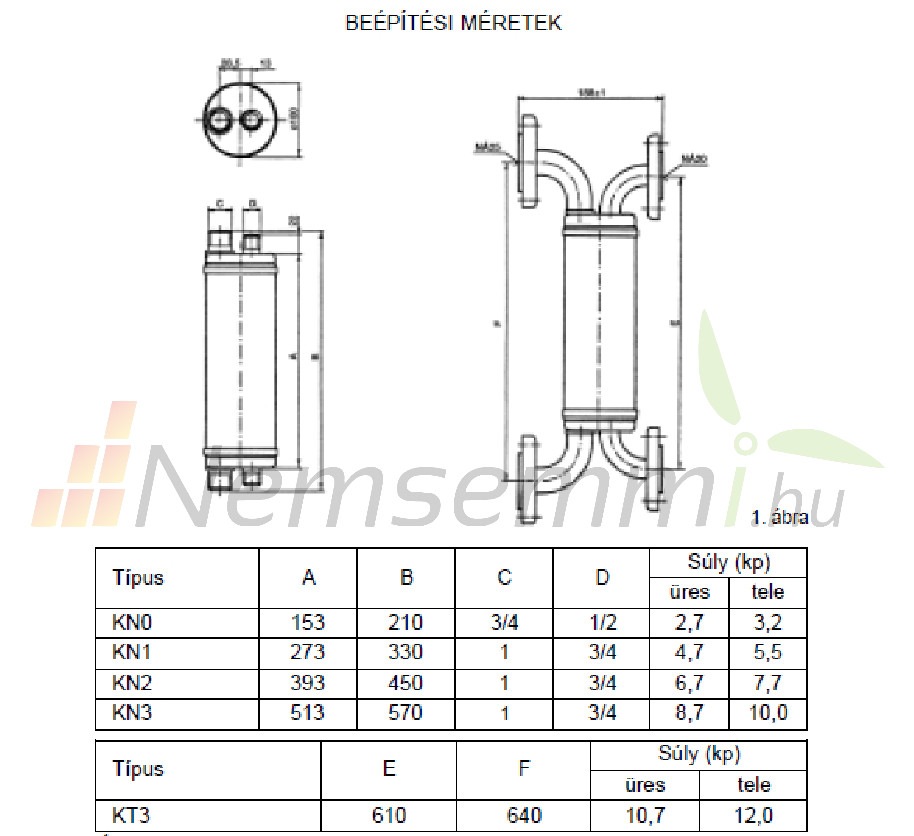

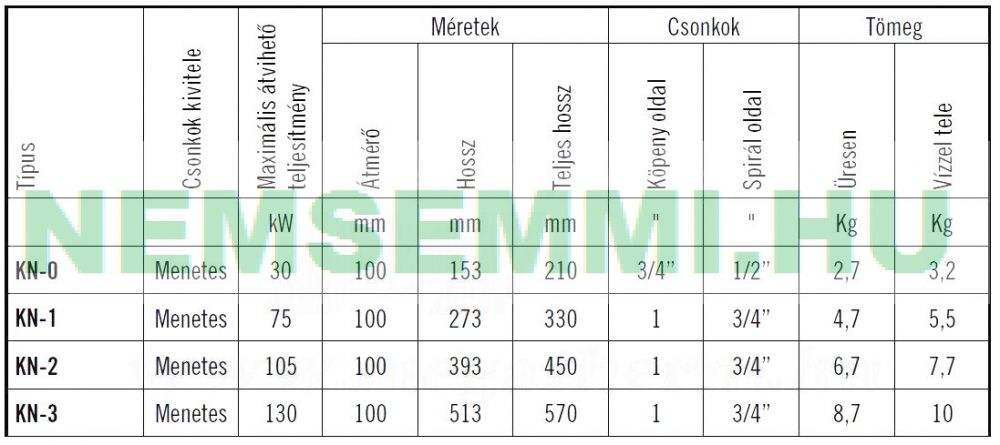

Technical data:

Power: 105 kW

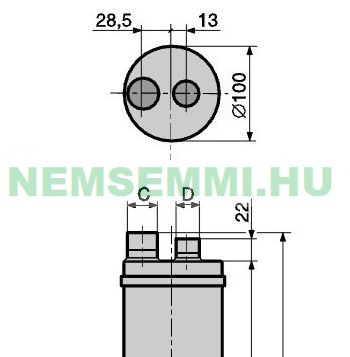

Diameter: 100 mm
Length: 393 mm
Total length: 450 mm
Connectors:
Sheet (heating) side: 2 x 1" external thread
Spiral (transferred, heat, e.g. pool) side: 2 x 3/4" external thread< br />Weight: 6.7 kg
Water volume: 1 liter
Material of the plates: W 1.4401 (AISI 316)
Operating pressure: 10 bar
Max. pressure: 15 bar
Operating temperature: -50 +150°C

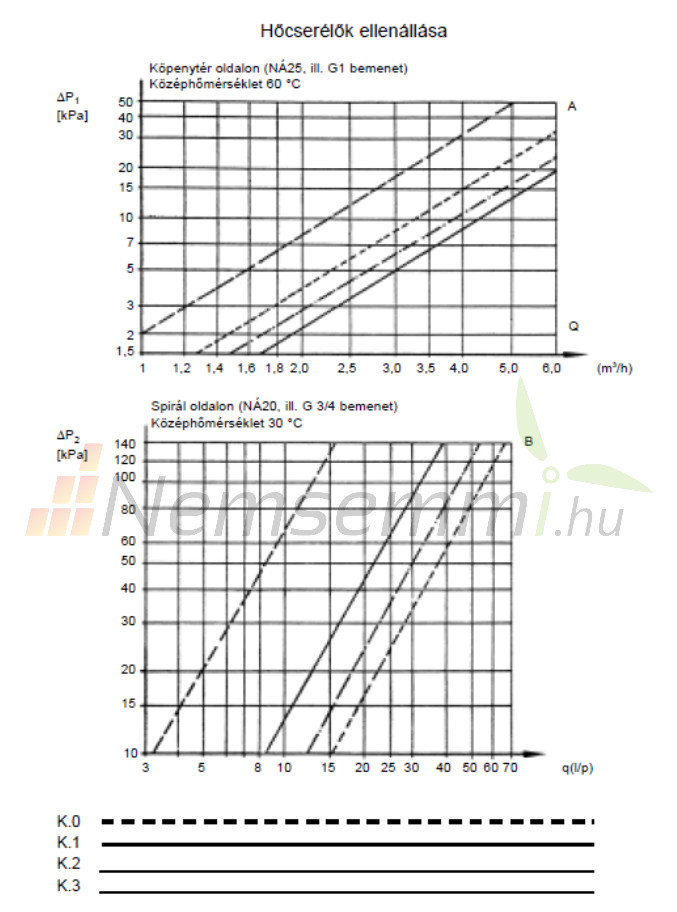

Performance data:

Heat transfer value - S x U (surface area x heat transfer coefficient)

< /span>

The values in the table are given in W/°C, in water-water operation, for 50°C DHW.
A= shell side mass flow (C" or DN25)
B=spiral side mass flow (C" or DN25)
The amount of heat transferred in the heat exchanger: Q= S x U x DTM, where DTm=logarithmic temperature difference.

< /span>

More information:

Spirec KN-2

In the selection of spiral coil heat exchangers used in heating systems, we can find a very small but at the same time high performance SPRIEC KN heat exchanger. This 100 mm diameter, cylindrical coiled heat exchanger is usually used to produce domestic hot water, but it also has other functions, so it can also be used in other areas.

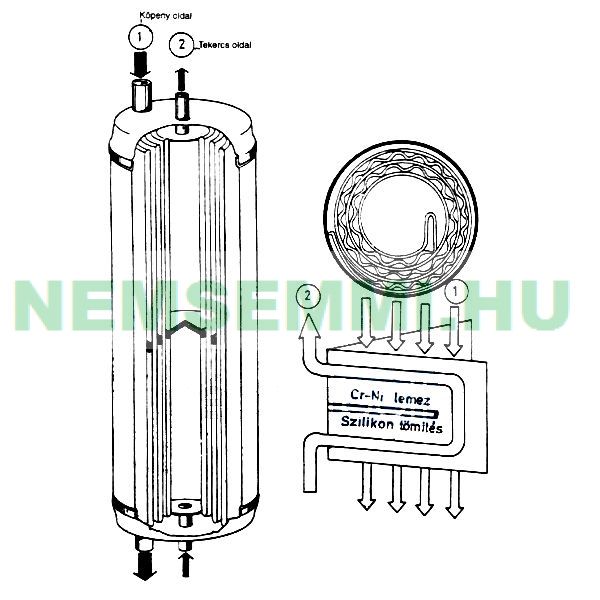

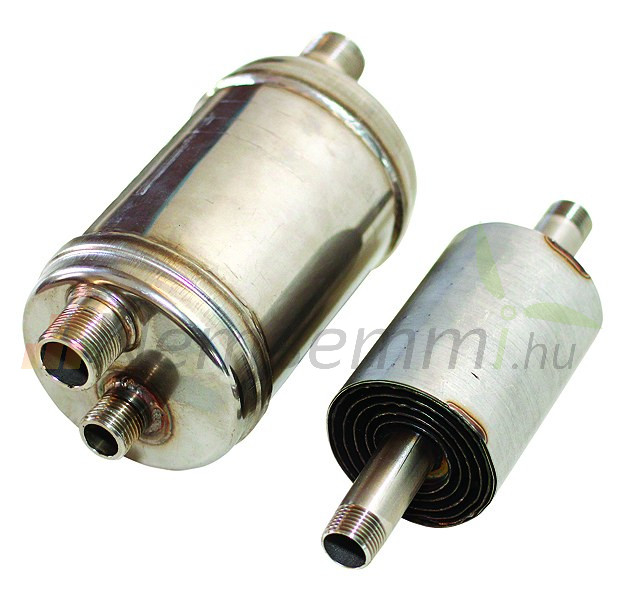

Due to its design, the water travels on one side in a spiral, thus turbulent manner. One heating medium (A) makes a long, spiral path through the heat exchanger, while the other (B) passes through it in a transverse direction.
Thanks to this structural design, the available heat transmission factor is of the order of 3-6kW/m²K.
Thanks to this, the heat transfer is better, as well as adequate (>1m/sec), if a continuous water flow rate is ensured, scale deposits practically do not occur in the heat exchanger.

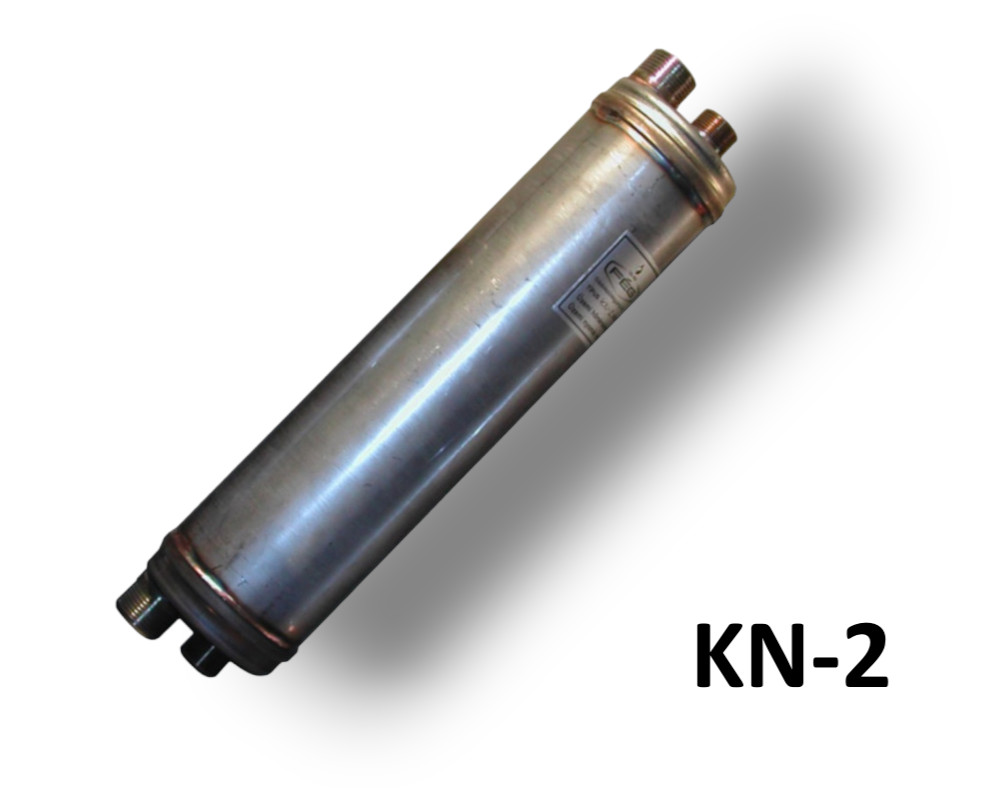

FÉG Spirec KN-2 spiral coil heat exchanger 105 kW cylinder

Spiral coil heat exchanger 105kW stainless

Spirec KN-2
