Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Nettó ára: 45.39 €
Bruttó ára: 57.64 €
  1. Homemade heat exchanger
  1. Heating, plumbing
  2. Heat exchanger
  3. Homemade heat exchanger

Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface

Article No.:
HOCSERELO-20KWINOXDN16_CST
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Heat exchanger 20 kW Do it yourself! Ribbed pipe that can be made at home from DN16 inox throat pipe with 3/4" connector for boiler. 1.1 m2 useful surface
Nettó ára: 45.39 €
Bruttó ára: 57.64 €
Teljesítmény (kW):
20
Csatlakozása:
3/4"
Máshol olcsóbban látta?
  • Details
  • Info
Details

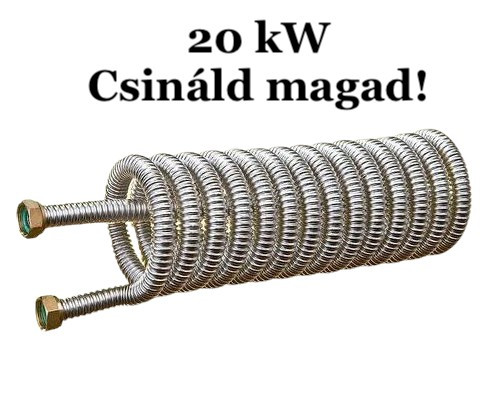

Home-made heat exchanger

A heat exchanger with the following parameters can be assembled from the set with a little dexterity:

Power: 20 kW
Number of coils: 28
If it goes well, the width of the roll is about 20 cm
Height of the roll is about 75 cm

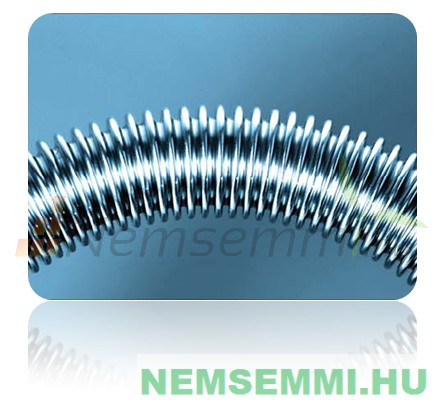

The inox ribbed pipe:

11 meter DN16 inox throat pipe
Total surface: 1.1 m2
Outer diameter: 21.5 mm +/- 0.4 mm
Inner diameter: 16.2 mm +/- 0.4 mm
Operating pressure at 20° up to 16 bar
Weight 0.14 kg/m

Stainless steel material 1.4404
Complies with: DIN EN ISO 10380
Temperature range between -270°C +600°C

More information:

Heat exchanger

You can use this kit to make your own stainless heat exchanger with a little dexterity and copper or stainless wire!
Power 20 kW

The set includes:
11 meters DN16 inox throat pipe
2 pieces of 3/4" spanners can be installed Dutch

For information, the useful surface of pipes of different diameters:
DN12 0.085 m2 /m
DN16 0.10m2/m
DN20 0.128 m2/m

Info
Vonalkód:
00087148
MPN-kód:
NS000826
Weight:
90 g/pcs
