12V motorized valve 3-way zone valve mixing valve changeover valve DN20 ¾" BB connectors low voltage motorized back-and-forth switching

Nettó ára: 44.83 €
Bruttó ára: 56.93 €

12V motorized valve 3-way zone valve mixing valve changeover valve DN20 ¾" BB connectors low voltage motorized back-and-forth switching

Nettó ára: 44.83 €
Bruttó ára: 56.93 €

Szelepjáratok száma:

Kétjáratú

Háromjáratú

Menet mérete:

3/4"

1/2"

1 1/4"

1 1/2"

Csatlakozás típusa:

Belső menet

Külső menet

Feszültség:

230V

12V

Működés típusa:

Kétirányú motoros vezérlés

Máshol olcsóbban látta?

Details
Info

Details

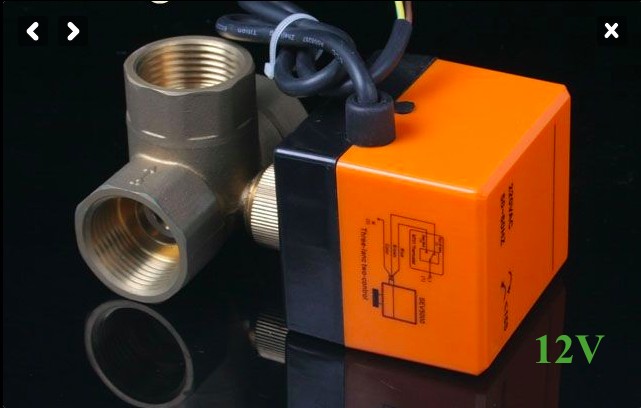

Zone valve, motorized ball valve 3-way

Motor 12 V
¾" internal threaded connectors

Connection guide
Green-yellow cable: N, i.e. zero point connection
Blue: L i.e. positive point connection
Black: L i.e. positive point connection

Depending on the connection of the positive, it turns in one or the other direction. The equipment does not consume in the end position.

More information:

Three-way motorized ball valve

The motor moves a ball valve, which lets thewater in one or the other direction depending on which of the 2 cables receives the voltage.
In the event of a power failure, it can also be adjusted with a key.
Consumes electricity only when moving, no consumption when closed or open.

Info

Vonalkód:

00077613

EAN-kód:

6445563434004

MPN-kód:

NS000431

Weight:

1 kg/pcs
