Solar collector system for heating and DHW production: 50-pipe collector + 500-liter Cordivari buffer tank with 3 heat exchangers + pump station + control + expansion tank

Solar collector system with 3 heat exchanger storage

- 1 x 30-tube solar collector with 6-year warranty
- 1 x 20-tube solar collector With a 6-year warranty
- 2 mounting frames (both for flat and pitched roofs)
- 1 pc 1 heat exchanger 3 heat exchanger Cordivari Eco-Combi 500 liters 1 inox and 2 steel heat exchangers
- 1 solar station with pump and expansion tank corresponding to the size of the system
- 1 programmable solar control with 3 sensors, safety functions

Assembly does not include connecting pipes, roof hook
and antifreeze.
For health reasons, we recommend the non-toxic solar antifreeze,
you can find the right one among our products.
10 liters is usually enough.
For installation, try our stainless steel ( inox ) throat tubes,with which the installation can also be done at home you can do it.
If you have any questions, we are happy to help!
Good luck!

More information:

Kombi solar collector set

If space is limited, you can also use a combi storage instead of the two containers
can handle the heating of your house or holiday home
as well as the production of domestic hot water!
Isn't it great?

Please note that the expected production time of the tank is 3-4 months when ordering.

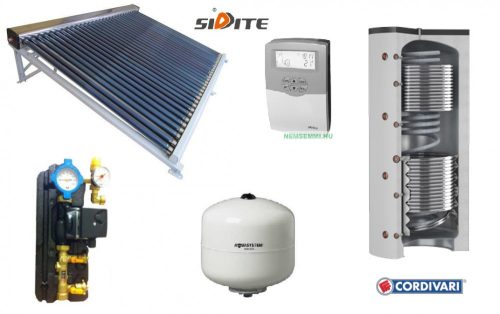

This package includes 1 30-tube and 1 20-tube vacuum tube solar collector,with quality control, pump station , with a 50 liter expansion tank and3 heat exchangers Cordivari Eco-Combi 500 liters with 1 inox and 2 steel heat exchangerssupplied with buffer tank.

The inox heat exchanger of the buffer is heated by the warm water in the tank.
Material of the heat exchanger stainless steel 316L.
This ribbed stainless steel tube has a particularly large surface,
which circulates in your heating system and which e.g. the boiler heats.

You can connect the solar collector or heat pump to the lower heat exchanger.
The solar collector or connect the heat pump system
with a heat exchanger, because it contains a different liquid, e.g. antifreeze can circulate.

The 2nd upper heat exchanger e.g. it is used for heating with a pellet or gas boiler.
It is not worth the entire buffer storage with a gas or pellet boiler
be heated from below, these boilers can quickly produce hot water,i.e. you don't need as much heat amount of water.
The solar collector can only produce hot water periodically,therefore it is worth store as much as possible, that's why the heat exchanger is at the bottom.

Recognized system on the market due to its favorable price and outstanding performance and small footprint.< br />You can also buy our products individually, of course at a higher price.

If you want to exchange a device, contact our customer service.
