Standing indirect container

Storage volume: 498L
Weight: 134 kg
Diameter with insulation: 75 cm
Height with insulation: 178.6 cm
Tilt height (R2): 194 cm
Maximum pressure of reservoir: 10 bar/90°C
Maximum pressure of heat exchanger: 12 bar/110°C
Upper heat exchanger surface: 3.1 m²
< span style="color: #000000;">Lower heat exchanger surface: 1.4 m²
Insulation: no removable hard polyurethane foam
Energy efficiency class: C
Further parameters in the pictures and on the downloadable data sheet.

DOWNLOAD DATA SHEET

More information:

2 DHW tanks with heat exchangers with extra large surface hoses

Especially suitable for utilizing heat produced by a solar collector or heat pump
since the solar collector and< /span>
a heat pump cannot produce as warm urine
as a boiler, so the length and surface of the heat exchanger are important.

Standing design, with POLYWARM® coating, two heat exchangers, not removable
hard polyurethane thermal insulation .
The complex corrosion protection is titanium-enamel internal and replaceable
anode provides.
Available accessory:

electric heating pad.

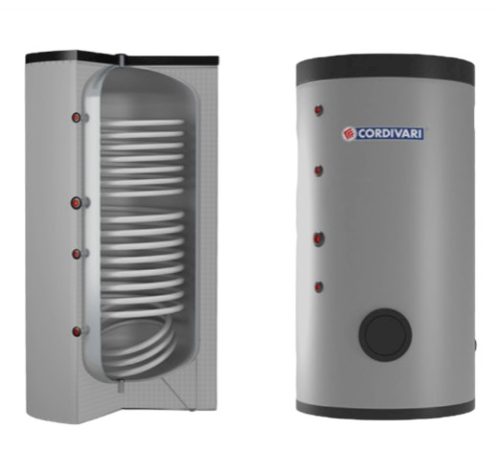

500 liter DHW tank with extra large heat exchanger - Cordivari Bolly2 XL WB500 2 heat exchangers for standing, solar collector or heat pump

Standing indirect container

2 DHW tanks with heat exchangers with extra large surface hoses
