Standing indirect container

Storage volume: 498L
Weight: 134 kg
Diameter with insulation: 75 cm
Height with insulation: 178.6 cm
Tilt height (R2): 193.7 cm
Maximum pressure of reservoir: 10 bar/90°C
Maximum pressure of heat exchanger: 12 bar/110°C
Upper heat exchanger surface: 1.0 m2
Lower heat exchanger surface: 1.8 m2
Insulation: non-removable hard polyurethane foam
Energy efficiency class: C
Further parameters on the pictures and downloadable data sheet.

DOWNLOADABLE DATA SHEET

More information:

2 DHW tanks with heat exchangers

The indirect storage is used to produce domestic hot water,through the built-in heat exchanger is heated.
One of the heat exchangers of the two heat exchanger storage can be heated, e.g. with a boiler, the other e.g. with a solar collector, the advantage is that it can be heated with two separate heat generators,which can also be a pellet boiler or a water fireplace. /span>Standing design, with POLYWARM® coating, two heat exchangers, not removable with hard polyurethane thermal insulation.
Complex corrosion protection with titanium-enamel internal and replaceable anode is provided.
Available accessory: electric heating pad.

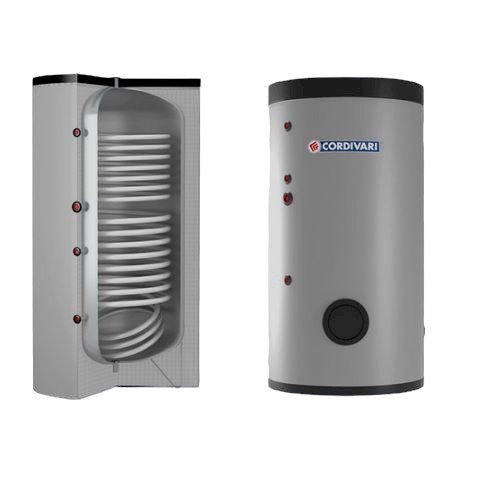

Hot water tank - Cordivari Bolly 2ST WB500 500L indirect boiler with 2 heat exchangers
