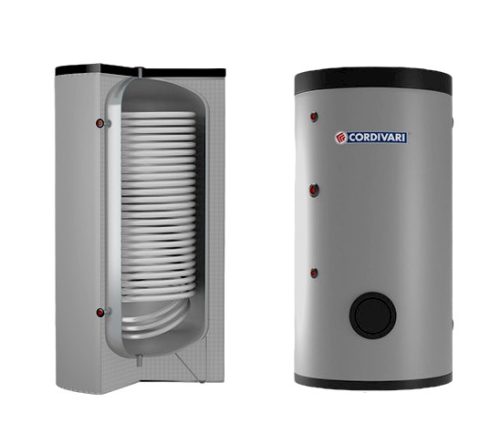

Standing indirect container

Storage capacity: 498L
Weight: 146 kg
Diameter with insulation: 75 cm
Height with insulation: 180 cm
Tilt height (R2): 196 cm
Maximum pressure of reservoir: 10 bar/90°C
Maximum pressure of heat exchanger: 12 bar/110°C
Heat exchanger surface: 5.4 m2
Mounting opening (K): inner diameter 120 mm, outer diameter 180 mm
Insulation: non-removable hard polyurethane foam
Energy efficiency class: C
Further parameters in the pictures and on the downloadable data sheet.

DOWNLOAD DATA SHEET

More information:

1 heat exchanger DHW tank with extra large hose

Especially suitable for utilizing heat produced by a solar collector or heat pumpbecause the solar collector and heat pump cannot be able to produce hot urine like a boiler, so it is important the length and surface of the heat exchanger.

Standing design, with POLYWARM® coating, one heat exchanger, not removable
hard polyurethane thermal insulation .
The complex corrosion protection is titanium-enamel internal and replaceableanode provides.

Available accessory:

electric heating pad.

500 liter DHW tank with extra large heat exchanger - Cordivari Bolly1 XL WB500 1 heat exchanger for stationary, solar collector or heat pump

Standing indirect container

1 heat exchanger DHW tank with extra large hose
