Access control system

Operating humidity: 0%-90%RH
Material: ABS
Color: black
Operating voltage: 12V DC< brother />Data capacity: 1000 users
Weight: 63 g
Standby current: <100mA
Size: 91x*48x20mm

More information:

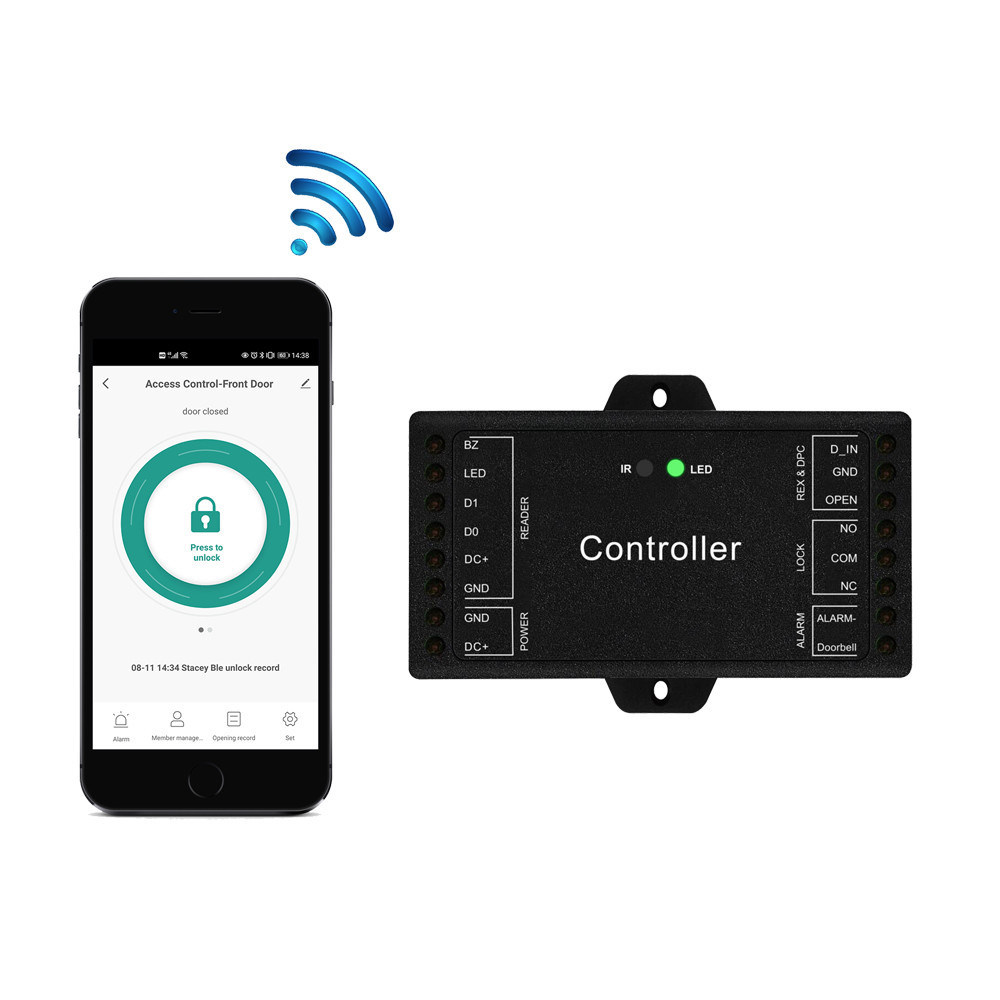

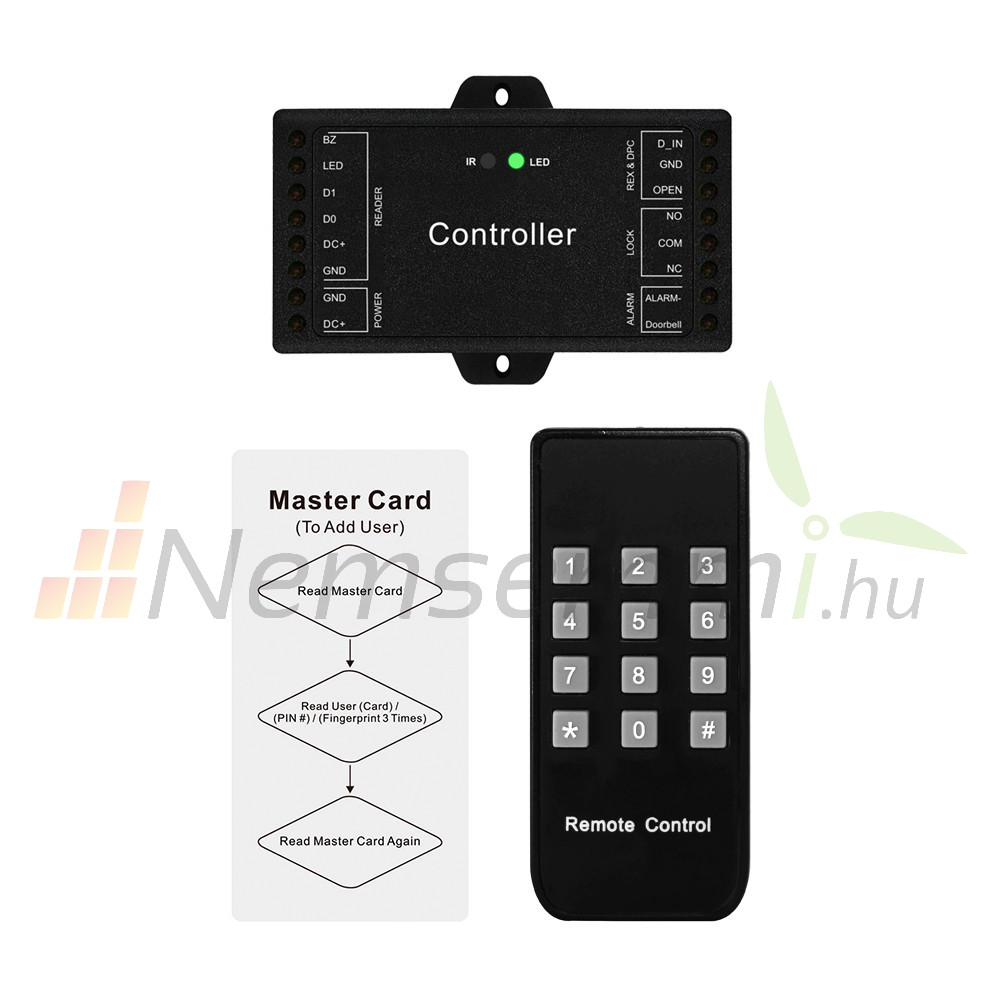

Smart access control system

This smart controller is a mini single-door control panel, it can work with any Wiegand 26-44, 56, 58bit output reader, it uses Atmel microcontroller to ensure stable performance. It is equipped with an infrared remote control for easy operation. The device supports 1000 users, all user data can be transferred.

Properties:

12V DC input
One relay, 1000 users, 500 in the application
Wiegand 26-44, 56, 58-bit input
You can connect to any 4-bit, 8-bit (ASCII) or 10-bit reader
with virtual digital output
User data can be transferred (except fingerprint)
2 controllers can be connected to 2 doors
Connectable to external alarm and door connector
iOS and Android
Delete and add users in application (only available for card users)
You can set a time limit for users
Temporary code (one-time or periodic)
Track opening records
Remote access
Multiple access methods: Smartphone, card, PIN, fingerprint
Ring notification (supports external bell)
