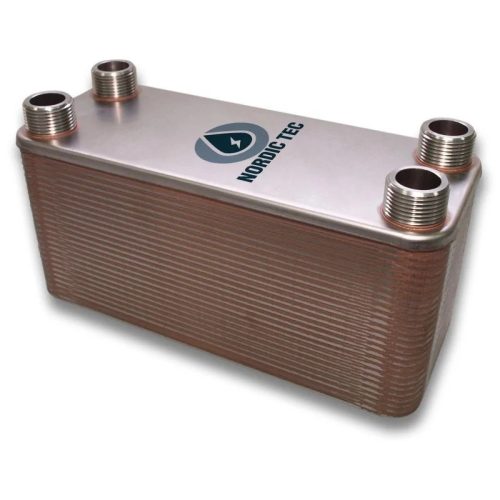

Plate heat exchanger with 50 plates 285kW 4x1" external connection

Plate heat exchanger

Maximum power of heat exchanger: 285kW
Nominal power: 50-110kW
Number of discs: 50
Connection: 4x1" external thread
Nominal flow: 12 m³/h
Heat exchanger side: 1,600 m²
Operating pressure: 30 bar
Test pressure: 45-60 bar
Min . temperature: -190°C
Max. temperature: +225°C
Weight: 7.7 kg
Plate material: stainless steel 304 or 316
Plate thickness: 0.4 mm
Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 286 mm
Width (B): 116 mm< /span>
Depth (F): 127 mm
Distance (C) : 243 mm
Distance (D): 72 mm

Operation tips:
⋅ It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

More information:

Plate heat exchanger

285kW heat exchanger
50 plate stainless design

• Material of the structure: 316L stainless steel soldered with 99.9% copper.
• Heating power between 50 and 110 kW, depending on the flow temperature.
• The device can easily handle a gas boiler with a maximum output of up to 60 kW, while maintaining a low (up to 50°C) temperature.
• The heat exchanger is also perfectly suitable for a heat pump if it is connected to the central heating system. In the case of a radiator system, it optimally serves e.g. a 10kW - 12kW
• The presence of glycol on the side of the heat pump is not a problem from the point of view of the heat exchanger.
• Connection: 4x 1"
• Operating pressure - up to 30 bar
• Test pressure - 45-60 bar
• Rated flow - < 12 m³/h
