Flow switch, flow indicator 1/2" KB 1.25-30 liters Hall signal sensor sensor

• Details
• Info

Details

Flow indicator

Rated voltage: 5V DC
Maximum switchable current: 15 mA
Operating range: 5-18V DC
Own current consumption: less than 10 mA
Operating temperature: 0-100 C
Maximum pressure: 17 Bar
Switch on: 1.25 liters/minute
Maximum flow: 30 liters/minute
Pipe connection: ½" internal and ½" external
< span style="color: #000000;">Size: ~67x25 mm
Cable length: 10 cm
3 cables: red positive, black negative, yellow transmitter

More information:

Flow Switch

The task of the flow switch is to monitor the presence and flow of liquids in the pipe. If there is no liquid or flow, you can turn it off, e.g. the circulating pump,or if the pump is not able to provide sufficient flow, it is protected by e.g. heating equipment.

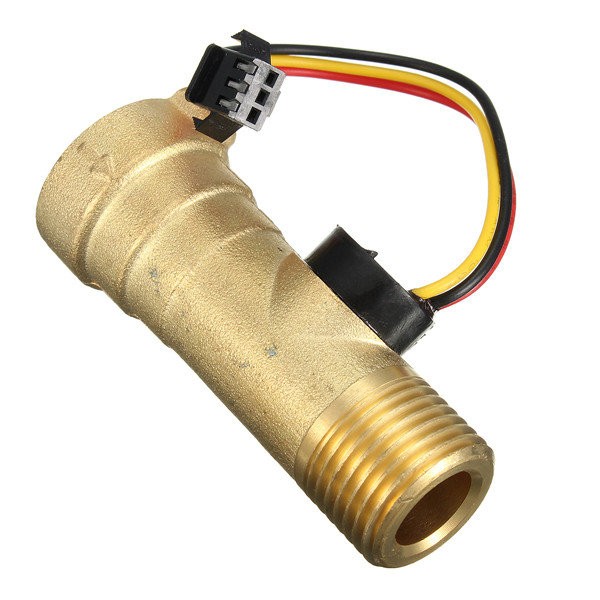

Flow indicator 1/2" copper 1.25-30 liters
Works with a magnetic Hall sensor

Info

Vonalkód:

00071081

EAN-kód:

644214555151

MPN-kód:

NS000130
