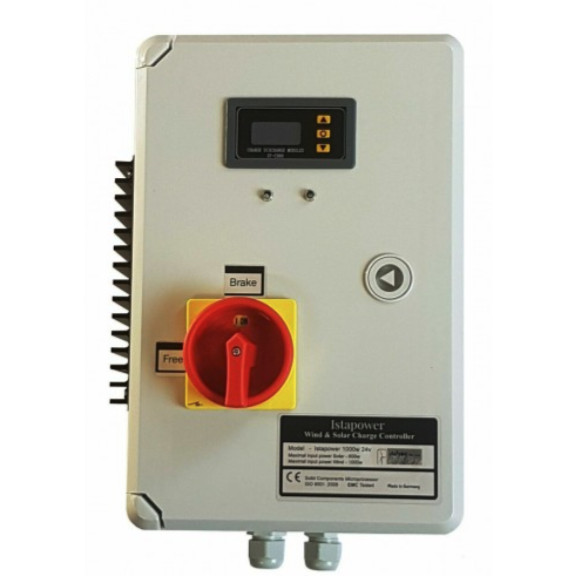

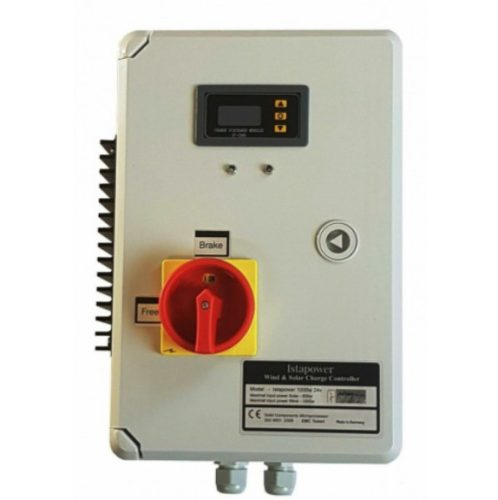

Hybrid wind wheel charging controller

Installation position: vertical, the wire inputs must be at the bottom.
Connection 48 V for 3-phase windmill max 2000W
Connection to DC solar panel max. 600W
Connection to 48V battery
Maximum charging voltage: 58.5 V
Minimum charging voltage: 48.8 V
Maximum input wind generator side current: 35 A
Overload protection.
When the battery is charged or in a storm, the wind wheel brakes the wind wheel with its magnetic brake.
By hand can be switched to braking mode.

Mounting on the wind wheel is only allowed with stationary or fixed propellers, due to the risk of electric shock!!

More information:

Wind wheel charge regulator

Microchip-controlled hybrid charging controllera maximum 2000 Watt wind turbineand a max. For 600 W solar panel

Meaning of LED lights:

LED lights up yellow -» system is operating
LED does not light yellow -» no electricity is connected to the system
LED flashes yellow -» system is operating (charging)
LED lights up red -» fully charged battery or braking mode
LED does not light red -» battery is not fully charged
The display shows voltage or we get information about the battery charge.

The minimum and maximum charging voltage can be modified and set with the buttons.
