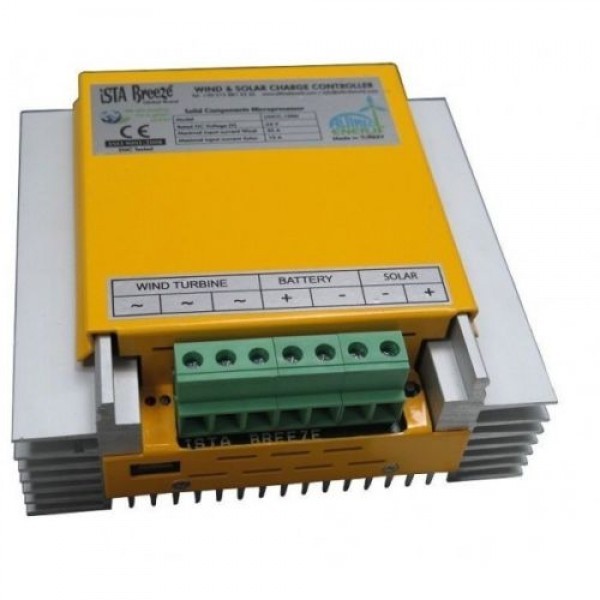

Hybrid wind wheel charging controller

Connection to 12/24 V 3-phase windmill with max 500W automatic recognition.
Connection direct current for solar panel max. 300W
Connection to 12/24V battery
Maximum charging voltage: 12V=14.6V / 24V=29.2V
Minimum battery voltage: 12V=8.5V / 24V 17.5V
Required battery size for 12V 1x100Ah, for 24V 2x100Ah
Overload protection.
Loaded in the case of a battery or storm, the wind wheel brakes the wind wheel with its magnetic brake.
Size: 150x170x70mm

The device is not waterproof, store and operate it in a water-free place.

More information:

Wind wheel charge regulator

Microchip-controlled hybrid charging controllera maximum 500 Watt wind turbine,and a max. For 300 W solar panel.

Meaning of LED lights:

LED lights up yellow -» system is operating
LED does not light yellow -» no electricity is connected to the system
LED flashes yellow -» system is operating (charging)
LED lights up red -» fully charged battery
LED does not light red -» battery not fully charged
LED flashes red -» 1 flash: battery disconnected/battery with incorrect voltage

2 flashes: input voltage too high

3 flashes: wind wheel spinning too fast

4 flashes: overheating

continuous flashing: wind wheel braking is in operation
