12-tube vacuum-tube Heat-Pipe solar collector Solar collector 12 vacuum tubes (vacuum-tube vacuum-tube) 6-year warranty!

Vacuum tube solar collector 12 tubes

Total collector surface: 1.80 m2
Collector useful surface: 1.56 m2
Collector width: 1150 mm
Connection pipes: 2x22 mm copper
Volume: 4.89 l

Vacuum tube diameter: 58 mm
Vacuum tube length: 1800 mm< br />Vacuum tube wall thickness: 1.6 mm
Absorber coating: SS-AL-Nx/Cu three target selective absorption coating
Vacuum tube wall thickness: 1.6 mm
Stagnation temperature: 250 C

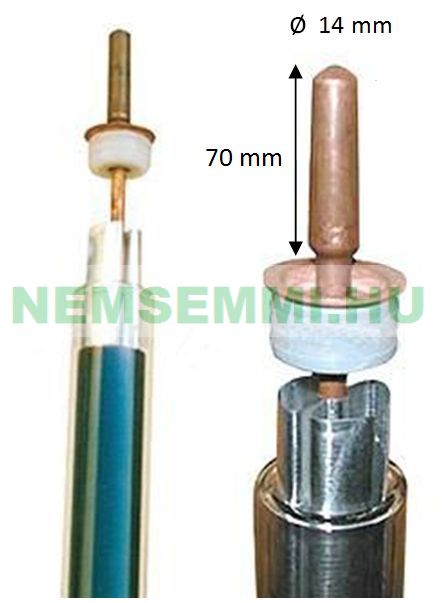

Heat-Pipe head diameter: 14 mm normal thickness
Heat-Pipe head length: 70 mm

Operating pressure: 6 bar
Maximum pressure: 10 bar< /p>

PACKING SIZE
Head: 111x16x17 cm 9 kg
Tubes 193x27x24 cm 30 kg

12-pipe Heat-Pipe system solar collector

Recommended for 120-liter containers.
For larger containers, we recommend several pieces or several pipe collectors .

Din Certco certification!

Reliability, operational safety and longevity are guaranteed by high-quality,corrosion-resistant materials: among others borosilicate glass(has excellent heat resistance and high chemical resistance), copper and stainless steel.

The product is delivered disassembled in a cardboard box.
Easy installation and maintenance.

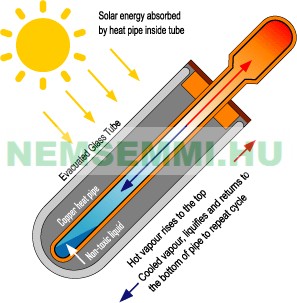

The vacuum pipes are connected dry, so there is no direct contact between the heat transfer medium and theglycol-water mixture connection.
It can be used to replace the pipes even with a charged system.

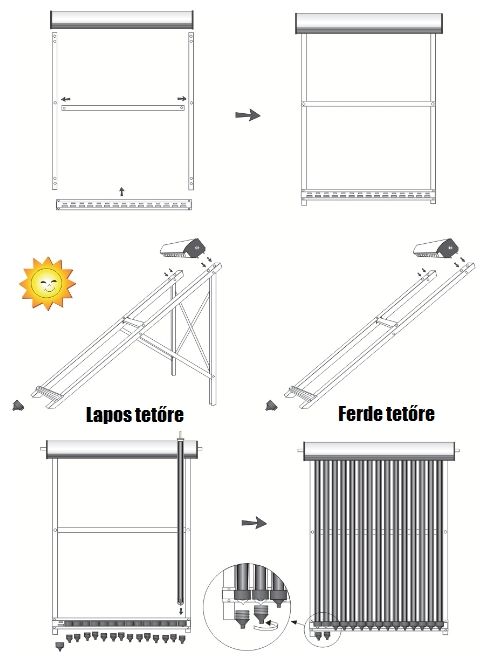

Find the support frame for a flat or pitched roof, which is also required for assembly, among our products!

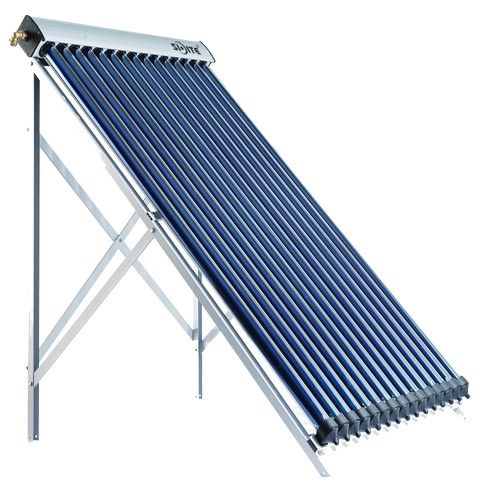

The picture shows it together with the support frame.
