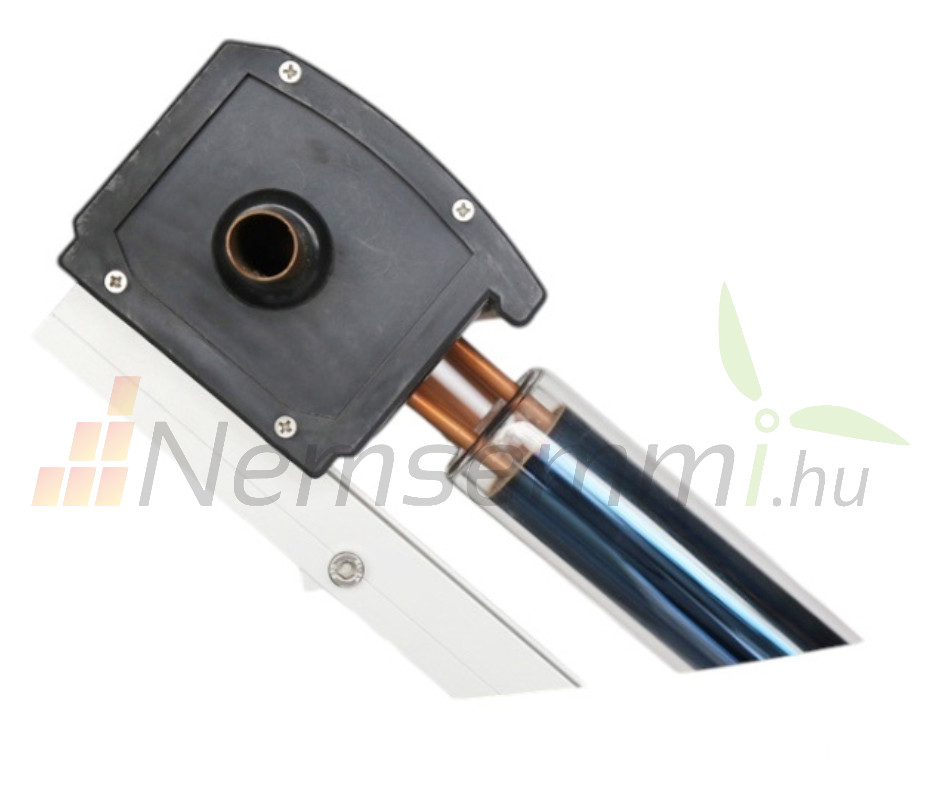

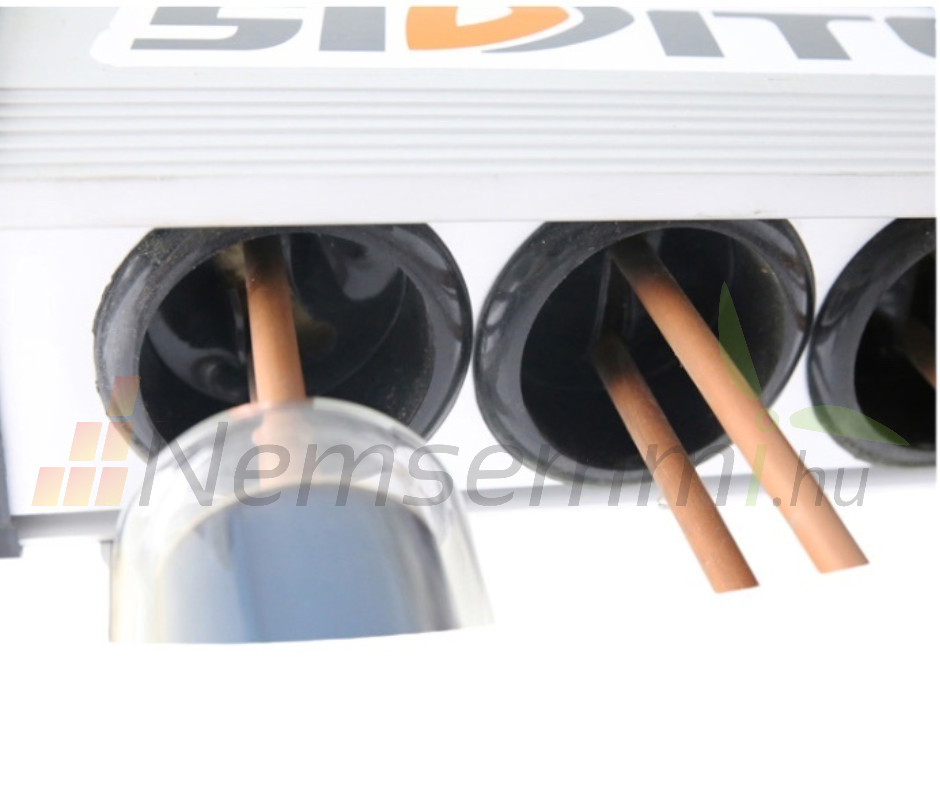

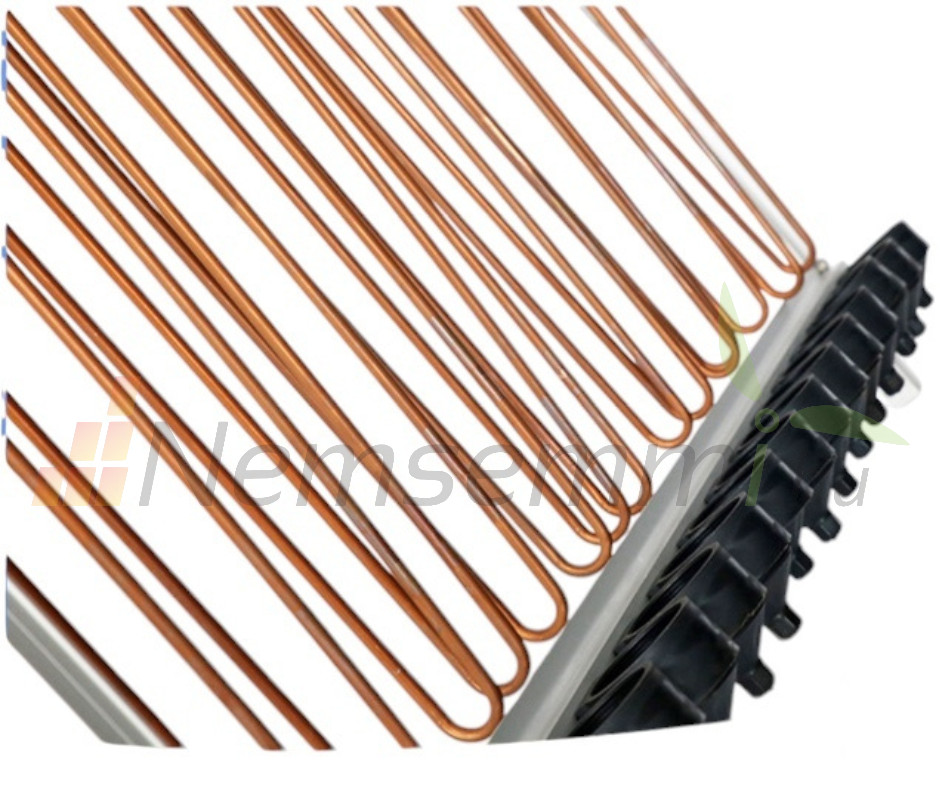

Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
19
Nettó ára: 414.37 €
Bruttó ára: 526.24 €

Nettó ára: 335.24 €
Bruttó ára: 425.76 €
  1. Vacuum tube solar collector
  1. Solar collector
  2. Vacuum tube solar collector
  3. Vacuum tube solar collector

Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes

Article No.:
NAPKOLLEKTOR_SC-U-15
19
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
Solar collector with u-tube 15 vacuum tube U-Pipe with a support frame with a slanted roof! In these cases, the antifreeze flows in the copper pipe leading to the vacuum pipes
19
Nettó ára: 414.37 €
Bruttó ára: 526.24 €

Nettó ára: 335.24 €
Bruttó ára: 425.76 €
Saving 100.49 €
Kockázatmentes vásárlás
180 napos elállás
Magyar cég, magyarországi raktár!
Máshol olcsóbban látta?
  • Details
  • Info
Details

15 tube collector

Reliability, operational safety and longevity are guaranteed by high-quality,corrosion-resistant materials: among others borosilicate glass(has excellent heat resistance and high chemical resistance), copper and aluminum.

Total collector surface: 2.3 m2
Aperture surface: 1.41 m2
Diameter of vacuum tubes: 58 mm
length: 1800 mm
Absorption surface: SS-AL-Nx/Cu selective coating
Operating pressure: 6 bar
Maximum pressure: 10 bar
Vacuum pipe wall thickness: 1.6 mm
Stagnation temperature: 250 C
Connections 2x22 mm copper

PACKING SIZE:
Collector without pipes: 200x135x18 cm 20 kg
Tubes: 194x34x25 cm 38 kg

More information:

U tube collector

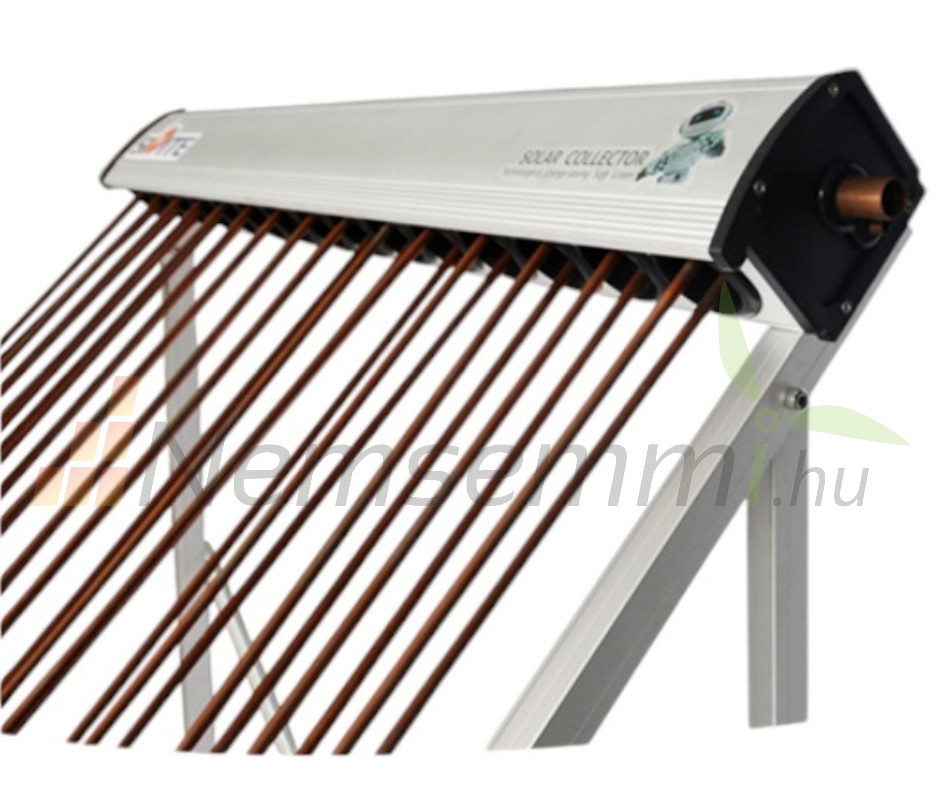

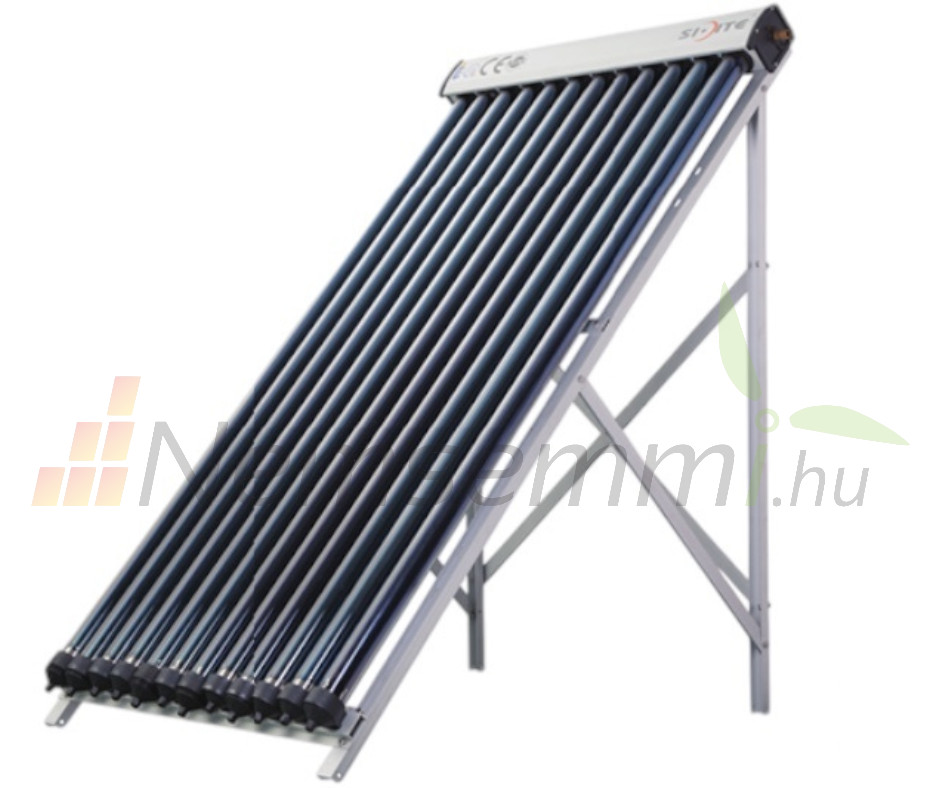

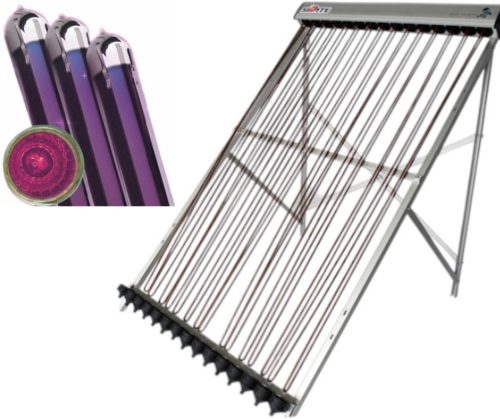

15-tube U-Pipe vacuum tube solar collector complete with aluminum mounting frame!

Recommended for 150-200 liter containers.
For larger containers, several pieces or several tubes we recommend a solar collector.

Info
MPN-kód:
NS001446
Weight:
38 kg/pcs
